High-Pressure 2-Way Ball Valve
High-Pressure 2-Way Ball Valve
SKU:ACC-d9c06b
Ensure seamless flow control with our High-Pressure 2-Way Ball Valve. Durable, reliable, and compliant with ISO standards.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
High-Pressure 2-Way Ball Valve
$99.99
Quantity: 1
Claim Your Seller Account
High-Pressure 2-Way Ball Valve
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

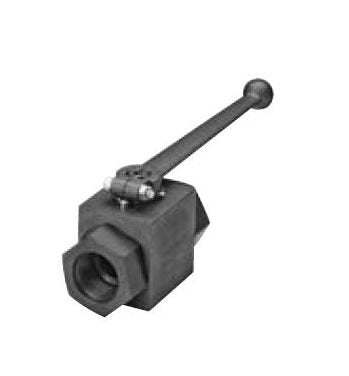

Upgrade your industrial systems with the High-Pressure 2-Way Ball Valve. Featuring a durable Carbon Steel housing and stainless steel spindle, this valve ensures reliable performance at operating pressures up to 7250 psi. With BSP female thread connections and a full port design, it offers seamless flow control. The Polyacetal ball seal and Fluoroelastomer O-Ring guarantee secure sealing even in extreme temperatures ranging from 14 ºF to 176 ºF. Compliant with International Organization for Standardization (ISO) standards, this valve is a robust choice for high-pressure applications.
Product Specifications
Dimensions Connection Size
G1/2
Dimensions Diameter D
15 mm
Dimensions Dimension B
40 mm
Dimensions Dimension D1
G1/2
Dimensions Dimension H
62 mm
Dimensions Dimension H1
20 mm
Dimensions Dimension H2
46 mm
Dimensions Dimension H3
11 mm
Dimensions Dimension I
16 mm
Dimensions Dimension L
83 mm
Dimensions Dimension L1
47 mm
Dimensions Dimension Sw1
12 mm
Dimensions Dimension Sw2
32 mm
Specifications Ball Plating
Chrome Plated
Specifications Bun
EA
Specifications Connection Gender
Female
Specifications Connection Standard
BSP Ports with ISO 228 Threads
Specifications Connection Type
(BSP) Female Thread
Specifications Flow Direction
2-Way
Specifications Handle Codes
Straight Aluminum
Specifications Housing Surface Plating
No Plating
Specifications Housing Type
Block Housing
Specifications Industry Standardscertifications
International Organization for Standardization (ISO)
Specifications Material Ball Seal
Polyacetal (Standard)
Specifications Material Body
Carbon Steel
Specifications Material Handle
Aluminum
Specifications Material Housing
Stainless Steel
Specifications Material O Ring
Fluoroelastomer (FPM) (Standard)
Specifications Material Spindle And Ball
Carbon Steel
Specifications Model Code Description
KHB-G1/2-1114-01X
Specifications Operating Pressure Max
7250 psi
Specifications Operating Temperature Max
176 ºF
Specifications Operating Temperature Min
14 ºF
Specifications Spindle Plating
Zinc Plated
Specifications Type
Ball Valve
Specifications Valve Operator
Handle
Specifications Valve Size
16
Specifications Weight
0.7 kg
