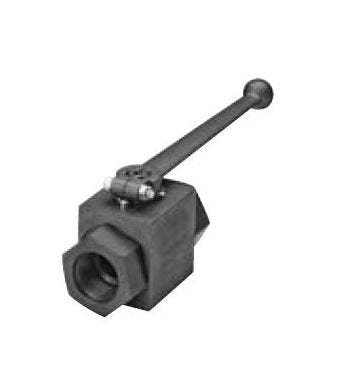

High-Pressure 2-Way Ball Valve, 7250 psi
High-Pressure 2-Way Ball Valve, 7250 psi
SKU:ACC-a53895
Durable High-Pressure 2-Way Ball Valve for precise flow control in industrial settings. Operating pressure up to 7250 psi.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
High-Pressure 2-Way Ball Valve, 7250 psi
$149.99
Quantity: 1
Claim Your Seller Account
High-Pressure 2-Way Ball Valve, 7250 psi
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience exceptional durability and performance with our High-Pressure 2-Way Ball Valve. Features a Full Port Design, Carbon Steel/Stainless Steel Housings, and BSP/DIN2353 Connections. With an operating pressure up to 7250 psi and a temperature range of 14°F to 176°F, this valve ensures reliable operation in demanding conditions. Perfect for industrial applications requiring precision flow control and high-pressure handling.
Product Specifications
Dimensions Connection Size
G1/2
Dimensions Diameter D
15 mm
Dimensions Dimension B
40 mm
Dimensions Dimension D1
G1/2
Dimensions Dimension H
62 mm
Dimensions Dimension H1
20 mm
Dimensions Dimension H2
46 mm
Dimensions Dimension H3
11 mm
Dimensions Dimension I
16 mm
Dimensions Dimension L
83 mm
Dimensions Dimension L1
47 mm
Dimensions Dimension Sw1
12 mm
Dimensions Dimension Sw2
32 mm
Specifications Ball Plating
Chrome Plated
Specifications Bun
EA
Specifications Connection Gender
Female
Specifications Connection Standard
BSP Ports with ISO 228 Threads
Specifications Connection Type
(BSP) Female Thread
Specifications Division
ACCESSORIES
Specifications Flow Direction
2-Way
Specifications Handle Codes
Straight Aluminum
Specifications Housing Surface Plating
Zinc Plated
Specifications Housing Type
Block Housing
Specifications Industry Standardscertifications
International Organization for Standardization (ISO)
Specifications Locking Device Option
Locking Device
Specifications Material Ball Seal
Polyacetal (Standard)
Specifications Material Body
Carbon Steel
Specifications Material Handle
Aluminum
Specifications Material Housing
Carbon Steel
Specifications Material O Ring
Fluoroelastomer (FPM) (Standard)
Specifications Material Spindle And Ball
Carbon Steel
Specifications Model Code Description
KHB-G1/2-1114-11X-A-L
Specifications Operating Pressure Max
7250 psi
Specifications Operating Temperature Max
176 ºF
Specifications Operating Temperature Min
14 ºF
Specifications Product
BALL VALVES
Specifications Product Group Family
BALL VALVES-HIGH PRESSURE (?3000 PSI)
Specifications Spindle Plating
Zinc Plated
Specifications Type
Ball Valve
Specifications Valve Size
16
