High Pressure 2-Way Ball Valve - Carbon Steel
High Pressure 2-Way Ball Valve - Carbon Steel
SKU:ACC-23b13d
Reliable High-Pressure 2-Way Ball Valve for demanding applications with up to 7250 psi operating pressure & -40 ºF to 392 ºF temperature range.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
High Pressure 2-Way Ball Valve - Carbon Steel
$89.99
Quantity: 1
Claim Your Seller Account
High Pressure 2-Way Ball Valve - Carbon Steel
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High-Pressure 2-Way Ball Valve features a Full Port Design suitable for demanding applications. Constructed with Carbon Steel or Stainless Steel housing options, this valve ensures reliable performance with an operating pressure of up to 7250 psi. The valve's temperature range of 14 ºF to 176 ºF, expandable to -40 ºF to 392 ºF with special materials, caters to diverse industrial needs. Its precise construction and materials make it a durable and efficient choice for high-pressure systems while meeting stringent industry standards like ISO certification.
Product Specifications
Dimensions Connection Size
3/4-16 UNF
Dimensions Diameter D
0.63 in | 16 mm
Dimensions Dimension A
6.88 in | 175 mm
Dimensions Dimension B
1.50 in | 38 mm
Dimensions Dimension H
2.48 in | 63 mm
Dimensions Dimension H1
1.77 in | 45 mm
Dimensions Dimension H2
0.43 in | 11 mm
Dimensions Dimension H3
0.75 in | 19 mm
Dimensions Dimension H4
2.01 in | 51 mm
Dimensions Dimension L
3.27 in | 83 mm
Dimensions Dimension Sq
0.47 in | 12 mm
Dimensions Tube Size
-8
Specifications Ball Plating
Chrome Plated
Specifications Bun
EA

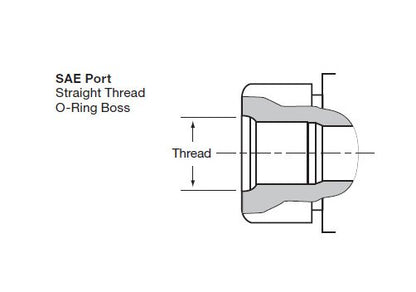

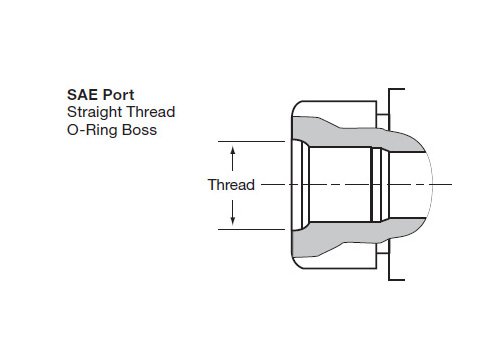

Specifications Connection Standard
SAEJ1926 Ports with ISO 725 Threads and O-Ring Sealing
Specifications Connection Type
SAE
Specifications Division
ACCESSORIES
Specifications Flow Direction
2-Way
Specifications Handle Codes
Straight Aluminum
Specifications Housing Surface Plating
Zinc Plated
Specifications Housing Type
Block Housing
Specifications Industry Standardscertifications
International Organization for Standardization (ISO)
Specifications Material Ball Seal
Polytetrafluoroethylene (PTFE) (1500 psi Max)
Specifications Material Body
Carbon Steel
Specifications Material Handle
Aluminum
Specifications Material Housing
Carbon Steel
Specifications Material O Ring
Fluoroelastomer (FPM) (1500 psi Max)
Specifications Material Spindle And Ball
Carbon Steel
Specifications Material Spindle Seal
Polytetrafluoroethylene (PTFE)
Specifications Model Code Description
KHB-16SAE-1133-11X-A
Specifications Nominal Size
16
Specifications Note For Maximum Pressure
Dependent upon valve and seal materials selected.
Specifications Operating Pressure Max
1500 psi
Specifications Operating Temperature Max
176 ºF
Specifications Operating Temperature Min
14 ºF
Specifications Product
BALL VALVES
Specifications Product Group Family
BALL VALVES-HIGH PRESSURE (?3000 PSI)
Specifications Spindle Plating
Zinc Plated
Specifications Type
Ball Valve
Specifications Valve Size
16
