High Pressure 2-Way Ball Valve, Carbon Steel, 1/2"-2"
High Pressure 2-Way Ball Valve, Carbon Steel, 1/2"-2"
SKU:ACC-dab495
High Pressure 2-Way Ball Valve for up to 6000 psi, durable design for versatile applications.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
High Pressure 2-Way Ball Valve, Carbon Steel, 1/2"-2"
$189.99
Quantity: 1
Claim Your Seller Account
High Pressure 2-Way Ball Valve, Carbon Steel, 1/2"-2"
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

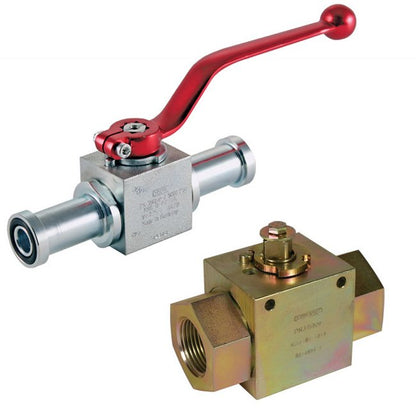

The High Pressure 2-Way Ball Valve features a full port design with Carbon Steel or Stainless Steel housings suitable for operating pressures up to 6000 psi. With a temperature range of 14 ºF to 176 ºF and the option for extended ranges, this valve offers durability and versatility. The forged housing, chrome-plated ball, and zinc-plated spindle ensure reliability in demanding applications. Ideal for high-pressure systems in diverse environments.
Product Specifications
Dimensions Connection Size
F6
Dimensions Diameter D
1.50 in | 38 mm
Dimensions Diameter D1
2.50 in | 63.5 mm
Dimensions Diameter D2
2.01 in | 51 mm
Dimensions Dimension A
12.01 in | 305 mm
Dimensions Dimension B
3.35 in | 85 mm
Dimensions Dimension C
0.50 in | 12.6 mm
Dimensions Dimension H
4.49 in | 114 mm
Dimensions Dimension H1
3.78 in | 96 mm
Dimensions Dimension H2
0.47 in | 12 mm
Dimensions Dimension H3
1.67 in | 42.5 mm
Dimensions Dimension H4
6.18 in | 157 mm
Dimensions Dimension L
11.06 in | 281 mm
Dimensions Dimension Sq
0.67 in | 17 mm
Dimensions Nominal Flange Size
1-1/2 in
Specifications Ball Plating
Chrome Plated
Specifications Bun
EA
Specifications Connection Standard
High Pressure Series, Code 62 SAE J518 Four Bolt Split Flange Type
Specifications Connection Type
SAE
Specifications Division
ACCESSORIES
Specifications Flange Dash Size
-24
Specifications Flow Direction
2-Way
Specifications Handle Codes
Without Handle
Specifications Housing Surface Plating
Zinc Plated
Specifications Housing Type
Forged Housing
Specifications Material Ball Seal
Polyacetal (Standard)
Specifications Material Body
Carbon Steel
Specifications Material Housing
Carbon Steel
Specifications Material O Ring
Fluoroelastomer (FPM) (Standard)
Specifications Material Spindle And Ball
Carbon Steel
Specifications Material Split Flange
Without Split Flanges
Specifications Model Code Description
KHM-40F6-1114X-09X-A-6000
Specifications Mounting Type
Flange
Specifications Note For Maximum Pressure
Dependent upon valve and seal materials selected.
Specifications Operating Pressure Max
6000 psi
Specifications Operating Temperature Max
176 ºF
Specifications Operating Temperature Min
14 ºF
Specifications Product
BALL VALVES
Specifications Product Group Family
BALL VALVES-HIGH PRESSURE (?3000 PSI)
Specifications Valve Size
40
