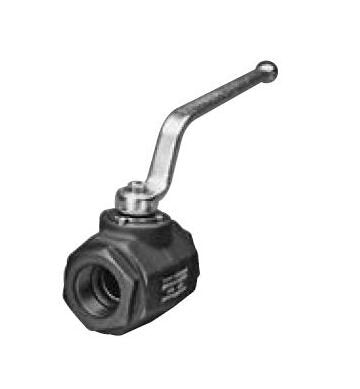

High Pressure 2-Way Ball Valve, Carbon Steel, 6000 psi
High Pressure 2-Way Ball Valve, Carbon Steel, 6000 psi
SKU:ACC-6df212
Durable High Pressure 2-Way Ball Valve, Carbon Steel, 6000 psi, ISO Certified
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
High Pressure 2-Way Ball Valve, Carbon Steel, 6000 psi
$129.99
Quantity: 1
Claim Your Seller Account
High Pressure 2-Way Ball Valve, Carbon Steel, 6000 psi
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience top-tier performance and reliability with our High Pressure 2-Way Ball Valve. Crafted from durable carbon steel with a full port design, this valve ensures efficient flow control in demanding industrial settings. Operating pressure up to 6000 psi and a temperature range of 14°F to 176°F make it ideal for high-pressure applications. With industry certifications including ISO compliance, this valve meets the highest standards for quality and safety.
Product Specifications
Dimensions Connection Size
1-5/8-12 UN
Dimensions Diameter D
1.18 in | 30 mm
Dimensions Dimension A
12.00 in | 305 mm
Dimensions Dimension B
2.95 in | 75 mm
Dimensions Dimension H
4.06 in | 103 mm
Dimensions Dimension H1
3.35 in | 85 mm
Dimensions Dimension H2
0.47 in | 12 mm
Dimensions Dimension H3
1.48 in | 37.5 mm
Dimensions Dimension H4
5.94 in | 151 mm
Dimensions Dimension L
4.33 in | 110 mm
Dimensions Dimension Sq
0.67 in | 17 mm
Dimensions Tube Size
-20
Specifications Ball Plating
Chrome Plated
Specifications Bun
EA
Specifications Connection Standard

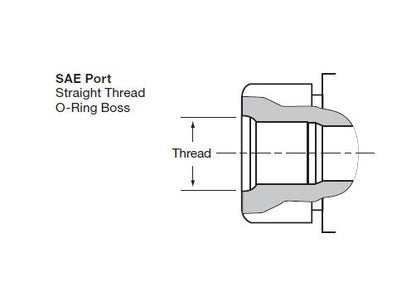

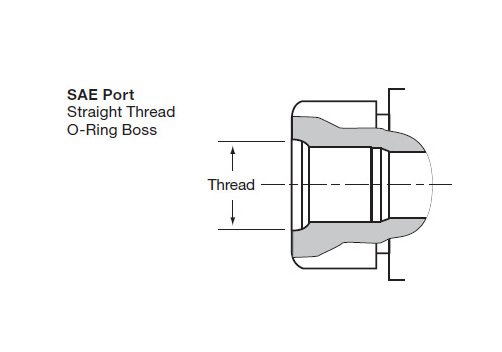

SAEJ1926 Ports with ISO 725 Threads and O-Ring Sealing
Specifications Connection Type
SAE
Specifications Division
ACCESSORIES
Specifications Flow Direction
2-Way
Specifications Handle Codes
offset Steel
Specifications Housing Surface Plating
Zinc Plated
Specifications Housing Type
Forged Housing
Specifications Industry Standardscertifications
International Organization for Standardization (ISO)
Specifications Locking Device Option
Locking Device
Specifications Material Ball Seal
Polyacetal (Standard)
Specifications Material Body
Carbon Steel
Specifications Material Handle
steel
Specifications Material Housing
Carbon Steel
Specifications Material O Ring
Fluoroelastomer (FPM) (Standard)
Specifications Material Spindle And Ball
Carbon Steel
Specifications Model Code Description
KHM-32SAE-1114-16X-A-L
Specifications Nominal Size
32
Specifications Note For Maximum Pressure
Dependent upon valve and seal materials selected.
Specifications Operating Pressure Max
6000 psi
Specifications Product
BALL VALVES
Specifications Product Group Family
BALL VALVES-HIGH PRESSURE (?3000 PSI)
Specifications Spindle Plating
Zinc Plated
Specifications Type
Ball Valve
Specifications Valve Operator
Handle
Specifications Valve Size
32
Specifications Weight
3.1 kg | 6.84 lb
