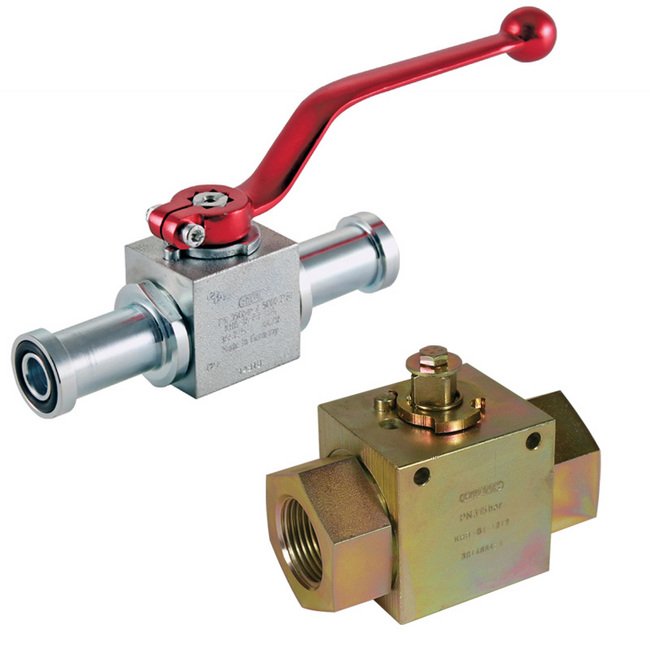

High Pressure 2-Way Ball Valve - Carbon Steel, 7250 psi
High Pressure 2-Way Ball Valve - Carbon Steel, 7250 psi
SKU:ACC-67f765
Enhance fluid control with our High Pressure 2-Way Ball Valve - Built for durability & high pressure applications up to 7250 psi.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
High Pressure 2-Way Ball Valve - Carbon Steel, 7250 psi
$59.99
Quantity: 1
Claim Your Seller Account
High Pressure 2-Way Ball Valve - Carbon Steel, 7250 psi
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your industrial fluid control with our High Pressure 2-Way Ball Valve featuring a full port design for efficient flow. This valve, constructed with Carbon Steel housing and components, ensures durability and reliability even in high-pressure applications up to 7250 psi. With BSP Ports, ISO 228 Threads, and a temperature range from 14 ºF to 176 ºF, this valve is designed to meet rigorous industry standards and exceed your expectations.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Connection Size
G1/2
Dimensions Diameter D
15 mm
Dimensions Dimension B
40 mm
Dimensions Dimension D1
G1/2
Dimensions Dimension H
62 mm
Dimensions Dimension H1
20 mm
Dimensions Dimension H2
46 mm
Dimensions Dimension H3
11 mm
Dimensions Dimension I
16 mm
Dimensions Dimension L
83 mm
Dimensions Dimension L1
47 mm
Dimensions Dimension Sw1
12 mm
Dimensions Dimension Sw2
32 mm
Specifications Ball Plating
Chrome Plated
Specifications Bun
EA
Specifications Connection Gender
Female
Specifications Connection Standard
BSP Ports with ISO 228 Threads
Specifications Connection Type
(BSP) Female Thread
Specifications Division
ACCESSORIES
Specifications Flow Direction
2-Way
Specifications Handle Codes
Straight Aluminum
Specifications Housing Surface Plating
Zinc Plated
Specifications Housing Type
Block Housing
Specifications Industry Standardscertifications
International Organization for Standardization (ISO)
Specifications Material Ball Seal
Polyacetal (Standard)
Specifications Material Body
Carbon Steel
Specifications Material Handle
Aluminum
Specifications Material Housing
Carbon Steel
Specifications Material O Ring
Nitrile Rubber (NBR) (Buna-N)
Specifications Material Spindle And Ball
Carbon Steel
Specifications Model Code Description
KHB-G1/2-1112-11X-A
Specifications Operating Pressure Max
7250 psi
Specifications Operating Temperature Max
176 ºF
Specifications Operating Temperature Min
14 ºF
Specifications Product
BALL VALVES
Specifications Product Group Family
BALL VALVES-HIGH PRESSURE (?3000 PSI)
Specifications Spindle Plating
Zinc Plated
Specifications Type
Ball Valve
Specifications Valve Operator
Handle
Specifications Valve Size
16
