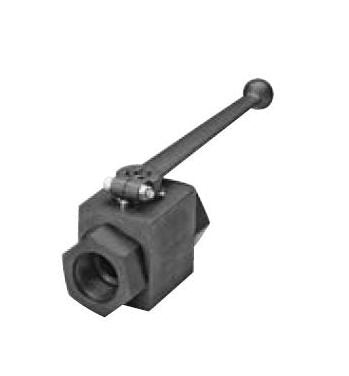

High Pressure 2-Way Ball Valve, Carbon Steel, 7250 psi, 1/4"-2"
High Pressure 2-Way Ball Valve, Carbon Steel, 7250 psi, 1/4"-2"
SKU:ACC-c45380
High Pressure 2-Way Ball Valve for precision flow control at 7250 psi. Carbon Steel construction, ISO certified.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
High Pressure 2-Way Ball Valve, Carbon Steel, 7250 psi, 1/4"-2"
$79.99
Quantity: 1
Claim Your Seller Account
High Pressure 2-Way Ball Valve, Carbon Steel, 7250 psi, 1/4"-2"
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Pressure 2-Way Ball Valve is designed for industrial applications requiring precision flow control. With a full port design and BSP or DIN2353 connections, this valve ensures smooth operation at pressures up to 7250 psi. Crafted from durable Carbon Steel with a Chrome Plated ball, it offers reliable performance in temperatures ranging from 14 °F to 176 °F. The valve meets International Organization for Standardization (ISO) standards, making it a dependable choice for government and institutional buyers.
Product Specifications
Dimensions Connection Size
G1/2
Dimensions Diameter D
15 mm
Dimensions Dimension B
40 mm
Dimensions Dimension D1
G1/2
Dimensions Dimension H
62 mm
Dimensions Dimension H1
20 mm
Dimensions Dimension H2
46 mm
Dimensions Dimension H3
11 mm
Dimensions Dimension I
16 mm
Dimensions Dimension L
83 mm
Dimensions Dimension L1
47 mm
Dimensions Dimension Sw1
12 mm
Dimensions Dimension Sw2
32 mm
Specifications Ball Plating
Chrome Plated
Specifications Bun
EA
Specifications Connection Gender
Female
Specifications Connection Standard
BSP Ports with ISO 228 Threads
Specifications Connection Type
(BSP) Female Thread
Specifications Flow Direction
2-Way
Specifications Handle Codes
offset Steel
Specifications Housing Surface Plating
No Plating
Specifications Housing Type
Block Housing
Specifications Industry Standardscertifications
International Organization for Standardization (ISO)
Specifications Material Ball Seal
Polyacetal (Standard)
Specifications Material Body
Carbon Steel
Specifications Material Handle
steel
Specifications Material Housing
Stainless Steel
Specifications Material O Ring
Nitrile Rubber (NBR) (Buna-N)
Specifications Material Spindle And Ball
Carbon Steel
Specifications Model Code Description
KHB-G1/2-1112-06X
Specifications Operating Pressure Max
7250 psi
Specifications Operating Temperature Max
176 ºF
Specifications Operating Temperature Min
14 ºF
Specifications Spindle Plating
Zinc Plated
Specifications Type
Ball Valve
Specifications Valve Operator
Handle
Specifications Valve Size
16
Specifications Weight
0.7 kg
