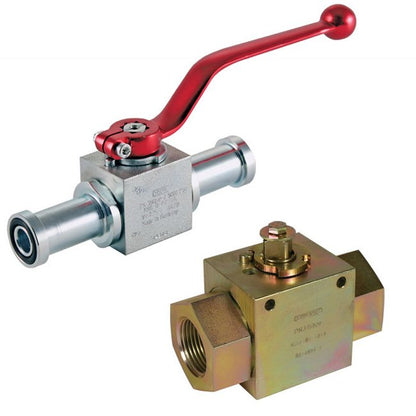

High Pressure 2-Way Ball Valve - Carbon Steel/Stainless Steel
High Pressure 2-Way Ball Valve - Carbon Steel/Stainless Steel
SKU:ACC-c9a1e5
Durable High Pressure 2-Way Ball Valve for industrial precision with Carbon Steel/Stainless Steel construction. Full port design, up to 6000 psi.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
High Pressure 2-Way Ball Valve - Carbon Steel/Stainless Steel
$129.99
Quantity: 1
Claim Your Seller Account
High Pressure 2-Way Ball Valve - Carbon Steel/Stainless Steel
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Pressure 2-Way Ball Valve is a durable solution designed for seamless control in demanding environments. Constructed with Carbon Steel or Stainless Steel housings, this valve offers a full port design suitable for operating pressures up to 6000 psi. With a temperature range from 14 ºF to 176 ºF, it ensures optimal performance under varying conditions. Featuring a forged housing and stainless steel spindle and ball, coupled with polyacetal ball seal and fluoroelastomer O-Ring, this valve guarantees reliability and longevity. Ideal for industrial applications requiring precision and resilience.
Product Specifications
Dimensions Connection Size
F3
Dimensions Diameter D
1.50 in | 38 mm
Dimensions Diameter D1
2.38 in | 60.35 mm
Dimensions Diameter D2
1.97 in | 50 mm
Dimensions Dimension A
12.01 in | 305 mm
Dimensions Dimension B
3.35 in | 85 mm
Dimensions Dimension C
0.31 in | 8 mm
Dimensions Dimension H
4.49 in | 114 mm
Dimensions Dimension H1
3.78 in | 96 mm
Dimensions Dimension H2
0.47 in | 12 mm
Dimensions Dimension H3
1.67 in | 42.5 mm
Dimensions Dimension H4
6.18 in | 157 mm
Dimensions Dimension L
9.09 in | 231 mm
Dimensions Dimension Sq
0.67 in | 17 mm
Dimensions Nominal Flange Size
1-1/2 in
Specifications Bun
EA
Specifications Connection Standard
Standard Pressure Series, Code 61 SAE J518 Four Bolt Split Flange Type
Specifications Connection Type
SAE
Specifications Division
ACCESSORIES
Specifications Flange Dash Size
-24
Specifications Flow Direction
2-Way
Specifications Handle Codes
offset Steel
Specifications Housing Surface Plating
Zinc Plated
Specifications Housing Type
Forged Housing
Specifications Material Ball Seal
Polyacetal (Standard)
Specifications Material Body
Carbon Steel
Specifications Material Handle
steel
Specifications Material Housing
Carbon Steel
Specifications Material O Ring
Fluoroelastomer (FPM) (Standard)
Specifications Material Spindle And Ball
Stainless Steel
Specifications Material Split Flange
Without Split Flanges
Specifications Model Code Description
KHM-40F3-1314X-16X-A
Specifications Mounting Type
Flange
Specifications Note For Maximum Pressure
Dependent upon valve and seal materials selected.
Specifications Operating Pressure Max
3000 psi
Specifications Operating Temperature Max
176 ºF
Specifications Operating Temperature Min
14 ºF
Specifications Product
BALL VALVES
Specifications Product Group Family
BALL VALVES-HIGH PRESSURE (?3000 PSI)
Specifications Valve Size
40
