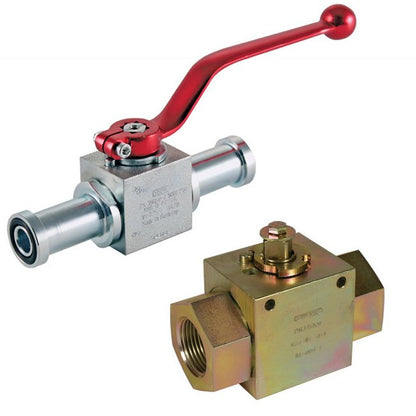

High Pressure 2-Way Ball Valve, Carbon Steel/Stainless Steel, 6000 psi
High Pressure 2-Way Ball Valve, Carbon Steel/Stainless Steel, 6000 psi
SKU:ACC-ebf1c4
High Pressure 2-Way Ball Valve, up to 6000 psi, Carbon Steel/Stainless Steel, durable design for varied applications.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
High Pressure 2-Way Ball Valve, Carbon Steel/Stainless Steel, 6000 psi
$199.99
Quantity: 1
Claim Your Seller Account
High Pressure 2-Way Ball Valve, Carbon Steel/Stainless Steel, 6000 psi
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Pressure 2-Way Ball Valve is designed for durability and reliability in demanding environments. Available in Carbon Steel or Stainless Steel, the valve features a full-port design with an operating pressure of up to 6000 psi, suitable for high-pressure applications. With a temperature range from 14 ºF to 176 ºF, extendable to -40 ºF to 392 ºF on request, and a forged housing type, this valve ensures optimal performance in varied conditions. The included handle for valve operation adds to the convenience and ease of use for operators.
Product Specifications
Dimensions Connection Size
F3
Dimensions Diameter D
1.89 in | 48 mm
Dimensions Diameter D1
2.81 in | 71.4 mm
Dimensions Diameter D2
2.44 in | 62 mm
Dimensions Dimension A
12.01 in | 305 mm
Dimensions Dimension B
4.13 in | 105 mm
Dimensions Dimension C
0.38 in | 9.6 mm
Dimensions Dimension H
5.18 in | 131.5 mm
Dimensions Dimension H1
4.43 in | 112.5 mm
Dimensions Dimension H2
0.47 in | 12 mm
Dimensions Dimension H3
2.07 in | 52.5 mm
Dimensions Dimension H4
6.46 in | 164 mm
Dimensions Dimension L
9.21 in | 234 mm
Dimensions Dimension Sq
0.67 in | 17 mm
Dimensions Nominal Flange Size
2 in
Specifications Ball Plating
Chrome Plated
Specifications Bun
EA
Specifications Connection Standard
Standard Pressure Series, Code 61 SAE J518 Four Bolt Split Flange Type
Specifications Connection Type
SAE
Specifications Division
ACCESSORIES
Specifications Flange Dash Size
-32
Specifications Flow Direction
2-Way
Specifications Handle Codes
offset Steel
Specifications Housing Surface Plating
Zinc Plated
Specifications Housing Type
Forged Housing
Specifications Material Ball Seal
Polytetrafluoroethylene (PTFE) (1500 psi Max)
Specifications Material Body
Carbon Steel
Specifications Material Handle
steel
Specifications Material Housing
Carbon Steel
Specifications Material O Ring
Fluoroelastomer (FPM) (1500 psi Max)
Specifications Material Spindle And Ball
Carbon Steel
Specifications Material Spindle Seal
Polytetrafluoroethylene (PTFE)
Specifications Material Split Flange
Without Split Flanges
Specifications Model Code Description
KHM-50F3-1133X-16X-A
Specifications Mounting Type
Flange
Specifications Note For Maximum Pressure
Dependent upon valve and seal materials selected.
Specifications Operating Pressure Max
1500 psi
Specifications Operating Temperature Max
176 ºF
Specifications Operating Temperature Min
14 ºF
Specifications Valve Size
50
