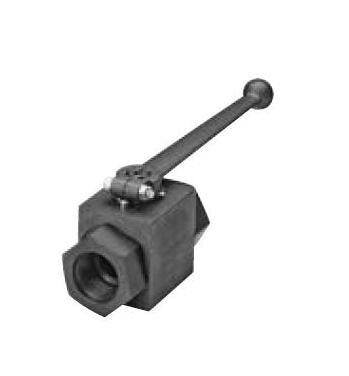

High-Pressure 2-Way Ball Valve, Carbon Steel/Stainless Steel, 7250 psi
High-Pressure 2-Way Ball Valve, Carbon Steel/Stainless Steel, 7250 psi
SKU:ACC-28271f
Enhance operations with our high-pressure 2-way ball valve, durable construction for reliable performance at 7250 psi.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
High-Pressure 2-Way Ball Valve, Carbon Steel/Stainless Steel, 7250 psi
$79.99
Quantity: 1
Claim Your Seller Account
High-Pressure 2-Way Ball Valve, Carbon Steel/Stainless Steel, 7250 psi
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your industrial operations with our High-Pressure 2-Way Ball Valve. With a full port design, BSP or DIN2353 connections, and carbon steel or stainless steel housing, this valve ensures reliable performance at pressures up to 7250 psi. Operating at temperatures ranging from 14°F to 176°F, it offers durability and efficiency in demanding environments. The ball valve's robust construction with chrome-plated ball and zinc-plated spindle guarantees long-term functionality, making it an ideal choice for high-pressure applications.
Product Specifications
Dimensions Connection Size
G1/2
Dimensions Diameter D
15 mm
Dimensions Dimension B
40 mm
Dimensions Dimension D1
G1/2
Dimensions Dimension H
62 mm
Dimensions Dimension H1
20 mm
Dimensions Dimension H2
46 mm
Dimensions Dimension H3
11 mm
Dimensions Dimension I
16 mm
Dimensions Dimension L
83 mm
Dimensions Dimension L1
47 mm
Dimensions Dimension Sw1
12 mm
Dimensions Dimension Sw2
32 mm
Specifications Ball Plating
Chrome Plated
Specifications Bun
EA
Specifications Connection Gender
Female
Specifications Connection Standard
BSP Ports with ISO 228 Threads
Specifications Connection Type
(BSP) Female Thread
Specifications Flow Direction
2-Way
Specifications Handle Codes
Without Handle
Specifications Housing Surface Plating
No Plating
Specifications Housing Type
Block Housing
Specifications Industry Standardscertifications
International Organization for Standardization (ISO)
Specifications Material Ball Seal
Polyacetal (Standard)
Specifications Material Body
Carbon Steel
Specifications Material Housing
Stainless Steel
Specifications Material O Ring
Nitrile Rubber (NBR) (Buna-N)
Specifications Material Spindle And Ball
Carbon Steel
Specifications Model Code Description
KHB-G1/2-1112-09X
Specifications Operating Pressure Max
7250 psi
Specifications Operating Temperature Max
176 ºF
Specifications Operating Temperature Min
14 ºF
Specifications Spindle Plating
Zinc Plated
Specifications Type
Ball Valve
Specifications Valve Operator
without handle
Specifications Valve Size
16
Specifications Weight
0.7 kg
