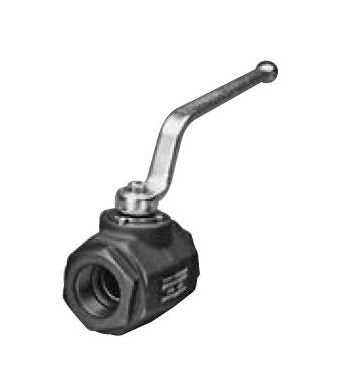

High-Pressure 2-Way Ball Valves, 1/4"-2", Carbon/Stainless Steel
High-Pressure 2-Way Ball Valves, 1/4"-2", Carbon/Stainless Steel
SKU:ACC-520d9c
Enhance fluid control with our High-Pressure 2-Way Ball Valves. Sizes 1/4"-2". Carbon/Stainless Steel. Operating Pressure up to 7250 psi. Wide temperature range. Durable design.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
High-Pressure 2-Way Ball Valves, 1/4"-2", Carbon/Stainless Steel
$89.99
Quantity: 1
Claim Your Seller Account
High-Pressure 2-Way Ball Valves, 1/4"-2", Carbon/Stainless Steel
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your fluid control system with our High-Pressure 2-Way Ball Valves. These valves, available in 1/4" to 2" sizes, feature a Full Port Design for enhanced flow efficiency. With Carbon or Stainless Steel Housings, these valves operate at pressures up to 7250 psi based on the selected seal materials. Enjoy a wide temperature range from 14 ºF to 176 ºF with standard materials, extendable to -40 ºF to 392 ºF with special materials. The forged housing and ANSI/ASME 1.20.1 Taper Pipe Thread connection ensure durability and compatibility with industry standards.
Product Specifications
Dimensions Connection Size
2 NPT
Dimensions Diameter D
1.89 in | 48 mm
Dimensions Dimension A
12.00 in | 305 mm
Dimensions Dimension B
4.13 in | 105 mm
Dimensions Dimension H
5.18 in | 131.5 mm
Dimensions Dimension H1
4.43 in | 112.5 mm
Dimensions Dimension H2
0.47 in | 12 mm
Dimensions Dimension H3
2.07 in | 52.5 mm
Dimensions Dimension H4
6.46 in | 164 mm
Dimensions Dimension L
5.51 in | 140 mm
Dimensions Dimension Sq
0.67 in | 17 mm
Dimensions Pipe Diameter
2.375 in
Dimensions Pipe Size
2 in
Specifications Ball Plating
Chrome Plated
Specifications Bun
EA
Specifications Connection Standard
ANSI/ASME 1.20.1 Taper Pipe Thread
Specifications Connection Type
NPT
Specifications Division
ACCESSORIES
Specifications Flow Direction
2-Way
Specifications Handle Codes
offset Steel
Specifications Housing Surface Plating
Zinc Plated
Specifications Housing Type
Forged Housing
Specifications Industry Standardscertifications
American National Standards Institute (ANSI)/American Society of Mechanical Engineers (ASME)
Specifications Locking Device Option
Locking Device with 5 amp Limit Switch, Available for sizes 20-50 (Not available with PTFE Spindle Seals)
Specifications Material Ball Seal
Polyacetal (Standard)
Specifications Material Body
Carbon Steel
Specifications Material Handle
steel
Specifications Material Housing
Carbon Steel
Specifications Material O Ring
Fluoroelastomer (FPM) (Standard)
Specifications Material Spindle And Ball
Carbon Steel
Specifications Model Code Description
KHM-50NPT-1114-16X-A-LS
Specifications Nominal Size
50
Specifications Note For Maximum Pressure
Dependent upon valve and seal materials selected.
Specifications Operating Pressure Max
6000 psi
Specifications Operating Temperature Max
176 ºF
Specifications Operating Temperature Min
14 ºF
Specifications Product
BALL VALVES
Specifications Product Group Family
BALL VALVES-HIGH PRESSURE (?3000 PSI)
Specifications Spindle Plating
Zinc Plated
Specifications Valve Size
50
