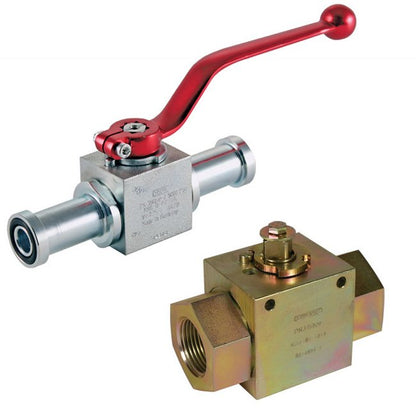

High Pressure 2-Way Ball Valves
High Pressure 2-Way Ball Valves
SKU:ACC-941d53
Ensure precise control in high-pressure systems with our durable High Pressure 2-Way Ball Valves. With carbon steel or stainless steel construction, suitable for a wide temperature range.
Regular price
$179.99
Regular price
Sale price
$179.99
Unit price
per
Initiate Order
High Pressure 2-Way Ball Valves
$179.99
Quantity: 1
Claim Your Seller Account
High Pressure 2-Way Ball Valves
$179.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior control and durability with our High Pressure 2-Way Ball Valves. Built with carbon steel or stainless steel housings, these valves ensure reliable performance in demanding environments. Operating pressure up to 6000 psi and a broad temperature range from 14°F to 176°F. With forged housing and zinc plating for enhanced longevity, these valves feature a full port design for optimal flow. The handle offers smooth operation, and the optional locking device provides added security. Ideal for high-pressure applications where precision is paramount.
Product Specifications
Dimensions Connection Size
F3
Dimensions Diameter D
1.50 in | 38 mm
Dimensions Diameter D1
2.38 in | 60.35 mm
Dimensions Diameter D2
1.97 in | 50 mm
Dimensions Dimension A
12.01 in | 305 mm
Dimensions Dimension B
3.35 in | 85 mm
Dimensions Dimension C
0.31 in | 8 mm
Dimensions Dimension H
4.49 in | 114 mm
Dimensions Dimension H1
3.78 in | 96 mm
Dimensions Dimension H2
0.47 in | 12 mm
Dimensions Dimension H3
1.67 in | 42.5 mm
Dimensions Dimension H4
6.18 in | 157 mm
Dimensions Dimension L
9.09 in | 231 mm
Dimensions Dimension Sq
0.67 in | 17 mm
Dimensions Nominal Flange Size
1-1/2 in
Specifications Ball Plating
Chrome Plated
Specifications Bun
EA
Specifications Connection Standard
Standard Pressure Series, Code 61 SAE J518 Four Bolt Split Flange Type
Specifications Connection Type
SAE
Specifications Division
ACCESSORIES
Specifications Flange Dash Size
-24
Specifications Flow Direction
2-Way
Specifications Handle Codes
offset Steel
Specifications Housing Surface Plating
Zinc Plated
Specifications Housing Type
Forged Housing
Specifications Locking Device Option
Locking Device with 5 amp Limit Switch, Available for sizes 20-50 (Not available with PTFE Spindle Seals)
Specifications Material Ball Seal
Polyacetal (Standard)
Specifications Material Body
Carbon Steel
Specifications Material Handle
steel
Specifications Material Housing
Carbon Steel
Specifications Material O Ring
Fluoroelastomer (FPM) (Standard)
Specifications Material Spindle And Ball
Carbon Steel
Specifications Material Split Flange
Without Split Flanges
Specifications Model Code Description
KHM-40F3-1114X-16X-A-LS
Specifications Mounting Type
Flange
Specifications Note For Maximum Pressure
Dependent upon valve and seal materials selected.
Specifications Operating Pressure Max
3000 psi
Specifications Operating Temperature Max
176 ºF
Specifications Operating Temperature Min
14 ºF
Specifications Valve Size
40
