High Pressure 2-Way Ball Valves
High Pressure 2-Way Ball Valves
SKU:ACC-576eaf
High Pressure 2-Way Ball Valves for reliable and durable high-pressure applications. Operating pressure up to 7250 psi with a wide temperature range. Industry-certified for quality and safety.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
High Pressure 2-Way Ball Valves
$189.99
Quantity: 1
Claim Your Seller Account
High Pressure 2-Way Ball Valves
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

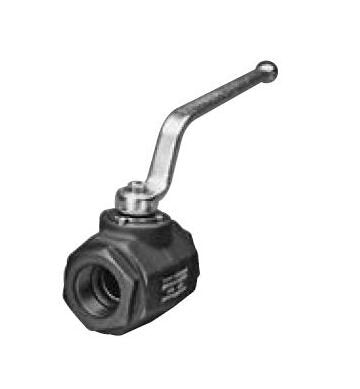

The High Pressure 2-Way Ball Valves are crafted with precision to meet the demanding requirements of high-pressure systems, offering a full port design in either carbon steel or stainless steel housings. With an operating pressure of up to 7250 psi (varies by valve size and seal materials), these valves ensure reliable performance. The temperature range from 14°F to 176°F (extended range available upon request) caters to a wide range of applications. Designed with forged housing and industry-certified materials, these valves prioritize durability, efficiency, and safety.
Product Specifications
Dimensions Connection Size
1-7/8-12 UN
Dimensions Diameter D
1.50 in | 38 mm
Dimensions Dimension A
12.00 in | 305 mm
Dimensions Dimension B
3.35 in | 85 mm
Dimensions Dimension H
3.78 in | 96 mm
Dimensions Dimension H1
3.78 in | 96 mm
Dimensions Dimension H2
0.47 in | 12 mm
Dimensions Dimension H3
1.67 in | 42.5 mm
Dimensions Dimension H4
6.18 in | 157 mm
Dimensions Dimension L
5.12 in | 130 mm
Dimensions Dimension Sq
0.67 in | 17 mm
Dimensions Tube Size
-24
Specifications Ball Plating
Chrome Plated
Specifications Bun
EA

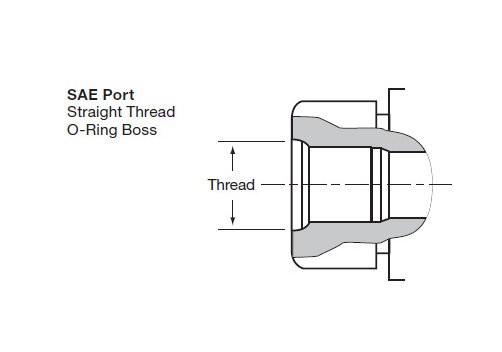

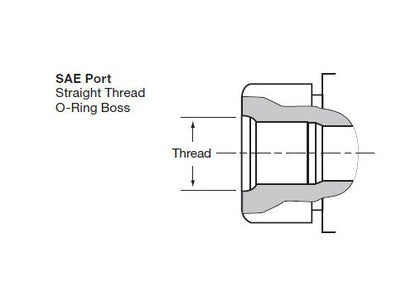

Specifications Connection Standard
SAEJ1926 Ports with ISO 725 Threads and O-Ring Sealing
Specifications Connection Type
SAE
Specifications Division
ACCESSORIES
Specifications Flow Direction
2-Way
Specifications Handle Codes
offset Steel
Specifications Housing Surface Plating
Zinc Plated
Specifications Housing Type
Forged Housing
Specifications Industry Standardscertifications
International Organization for Standardization (ISO)
Specifications Locking Device Option
Locking Device with 5 amp Limit Switch, Available for sizes 20-50 (Not available with PTFE Spindle Seals)
Specifications Material Ball Seal
Polytetrafluoroethylene (PTFE) (1500 psi Max)
Specifications Material Body
Carbon Steel
Specifications Material Handle
steel
Specifications Material Housing
Carbon Steel
Specifications Material O Ring
Fluoroelastomer (FPM) (Standard)
Specifications Material Spindle And Ball
Carbon Steel
Specifications Model Code Description
KHM-40SAE-1134-16X-A-LS
Specifications Nominal Size
40
Specifications Note For Maximum Pressure
Dependent upon valve and seal materials selected.
Specifications Operating Pressure Max
6000 psi
Specifications Operating Temperature Max
176 ºF
Specifications Operating Temperature Min
14 ºF
Specifications Product
BALL VALVES
Specifications Product Group Family
BALL VALVES-HIGH PRESSURE (?3000 PSI)
Specifications Spindle Plating
Zinc Plated
Specifications Type
Ball Valve
Specifications Valve Size
40
