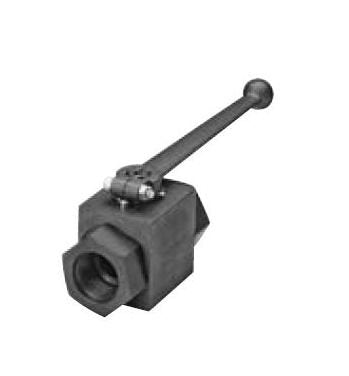

High-Pressure 2-Way Ball Valves
High-Pressure 2-Way Ball Valves
SKU:ACC-287320
Enhance fluid control with our High-Pressure 2-Way Ball Valves. Max 7250 psi, Carbon Steel, BSP Connections. ISO-certified for industrial needs.
Regular price
$139.99
Regular price
Sale price
$139.99
Unit price
per
Initiate Order
High-Pressure 2-Way Ball Valves
$139.99
Quantity: 1
Claim Your Seller Account
High-Pressure 2-Way Ball Valves
$139.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your industrial fluid control systems with our High-Pressure 2-Way Ball Valves. Available in sizes ranging from 1/4" to 2", these full port valves are designed for maximum operating pressures up to 7250 psi. Constructed with durable Carbon Steel or Stainless Steel housing options, these valves ensure reliable performance in temperature ranges from 14 ºF to 176 ºF. The BSP or DIN2353 connections provide secure fittings, while the Polyacetal ball seal and Fluoroelastomer O-Ring guarantee leak-free operations. With industry-standard certifications like ISO compliance, our Ball Valves are an ideal choice for high-pressure applications in various industries.
Product Specifications
Dimensions Connection Size
G1/2
Dimensions Diameter D
15 mm
Dimensions Dimension B
40 mm
Dimensions Dimension D1
G1/2
Dimensions Dimension H
62 mm
Dimensions Dimension H1
20 mm
Dimensions Dimension H2
46 mm
Dimensions Dimension H3
11 mm
Dimensions Dimension I
16 mm
Dimensions Dimension L
83 mm
Dimensions Dimension L1
47 mm
Dimensions Dimension Sw1
12 mm
Dimensions Dimension Sw2
32 mm
Specifications Ball Plating
Chrome Plated
Specifications Bun
EA
Specifications Connection Gender
Female
Specifications Connection Standard
BSP Ports with ISO 228 Threads
Specifications Connection Type
(BSP) Female Thread
Specifications Division
ACCESSORIES
Specifications Flow Direction
2-Way
Specifications Handle Codes
offset Steel
Specifications Housing Surface Plating
Zinc Plated
Specifications Housing Type
Block Housing
Specifications Industry Standardscertifications
International Organization for Standardization (ISO)
Specifications Locking Device Option
Locking Device
Specifications Material Ball Seal
Polyacetal (Standard)
Specifications Material Body
Carbon Steel
Specifications Material Handle
steel
Specifications Material Housing
Carbon Steel
Specifications Material O Ring
Fluoroelastomer (FPM) (Standard)
Specifications Material Spindle And Ball
Carbon Steel
Specifications Model Code Description
KHB-G1/2-1114-16X-A-L
Specifications Operating Pressure Max
7250 psi
Specifications Operating Temperature Max
176 ºF
Specifications Operating Temperature Min
14 ºF
Specifications Product
BALL VALVES
Specifications Product Group Family
BALL VALVES-HIGH PRESSURE (?3000 PSI)
Specifications Spindle Plating
Zinc Plated
Specifications Type
Ball Valve
Specifications Valve Size
16
