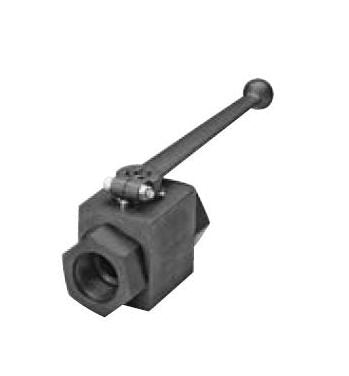

High-Pressure 2-Way Ball Valves, Carbon Steel, 7250 psi
High-Pressure 2-Way Ball Valves, Carbon Steel, 7250 psi
SKU:ACC-ac11bb
Enhance industrial operations with our High-Pressure Ball Valves. Reliable Carbon Steel construction, 7250 psi operating pressure, ISO compliant.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
High-Pressure 2-Way Ball Valves, Carbon Steel, 7250 psi
$89.99
Quantity: 1
Claim Your Seller Account
High-Pressure 2-Way Ball Valves, Carbon Steel, 7250 psi
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your industrial operations with our High-Pressure 2-Way Ball Valves constructed from durable Carbon Steel. With an impressive operating pressure up to 7250 psi and a temperature range from 14°F to 176°F, these valves offer reliability and efficiency. Featuring BSP Female Thread connections, chrome-plated ball, and zinc-plated housing, these valves ensure long-lasting performance in high-pressure environments. Compliant with ISO standards, these valves are ideal for applications requiring precision and durability.
Product Specifications
Dimensions Connection Size
G1/2
Dimensions Diameter D
15 mm
Dimensions Dimension B
40 mm
Dimensions Dimension D1
G1/2
Dimensions Dimension H
62 mm
Dimensions Dimension H1
20 mm
Dimensions Dimension H2
46 mm
Dimensions Dimension H3
11 mm
Dimensions Dimension I
16 mm
Dimensions Dimension L
83 mm
Dimensions Dimension L1
47 mm
Dimensions Dimension Sw1
12 mm
Dimensions Dimension Sw2
32 mm
Specifications Ball Plating
Chrome Plated
Specifications Bun
EA
Specifications Connection Gender
Female
Specifications Connection Standard
BSP Ports with ISO 228 Threads
Specifications Connection Type
(BSP) Female Thread
Specifications Division
ACCESSORIES
Specifications Flow Direction
2-Way
Specifications Handle Codes
Without Handle
Specifications Housing Surface Plating
Zinc Plated
Specifications Housing Type
Block Housing
Specifications Industry Standardscertifications
International Organization for Standardization (ISO)
Specifications Material Ball Seal
Polyacetal (Standard)
Specifications Material Body
Carbon Steel
Specifications Material Housing
Carbon Steel
Specifications Material O Ring
Nitrile Rubber (NBR) (Buna-N)
Specifications Material Spindle And Ball
Carbon Steel
Specifications Model Code Description
KHB-G1/2-1112-09X-A
Specifications Operating Pressure Max
7250 psi
Specifications Operating Temperature Max
176 ºF
Specifications Operating Temperature Min
14 ºF
Specifications Product
BALL VALVES
Specifications Product Group Family
BALL VALVES-HIGH PRESSURE (?3000 PSI)
Specifications Spindle Plating
Zinc Plated
Specifications Type
Ball Valve
Specifications Valve Operator
without handle
Specifications Valve Size
16
Specifications Weight
0.7 kg
