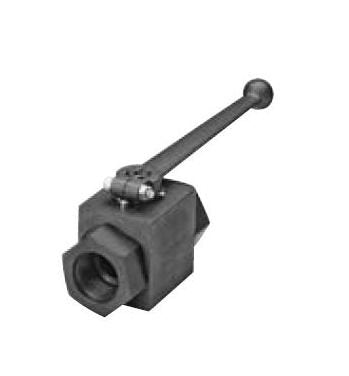

High-Pressure 2-Way Ball Valves, Carbon Steel/Stainless Steel, 1/4" - 2"
High-Pressure 2-Way Ball Valves, Carbon Steel/Stainless Steel, 1/4" - 2"
SKU:ACC-58752f
Industrial-grade 2-way ball valves - customizable size, materials & pressure. ISO compliant.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
High-Pressure 2-Way Ball Valves, Carbon Steel/Stainless Steel, 1/4" - 2"
$129.99
Quantity: 1
Claim Your Seller Account
High-Pressure 2-Way Ball Valves, Carbon Steel/Stainless Steel, 1/4" - 2"
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your industrial systems with our high-performance 2-way ball valves designed for maximum efficiency. Available in carbon steel or stainless steel, these valves offer a full port design and can operate at pressures up to 7250 psi. With a wide temperature range and durable materials, these valves ensure reliable performance in demanding environments. The valve size, materials, and pressure rating can be customized to meet specific requirements. Compliant with ISO standards, these valves are a dependable choice for government and institutional procurement needs.
Product Specifications
Dimensions Connection Size
3/4-16 UNF
Dimensions Diameter D
0.63 in | 16 mm
Dimensions Dimension A
6.88 in | 175 mm
Dimensions Dimension B
1.50 in | 38 mm
Dimensions Dimension H
2.48 in | 63 mm
Dimensions Dimension H1
1.77 in | 45 mm
Dimensions Dimension H2
0.43 in | 11 mm
Dimensions Dimension H3
0.75 in | 19 mm
Dimensions Dimension H4
2.01 in | 51 mm
Dimensions Dimension L
3.27 in | 83 mm
Dimensions Dimension Sq
0.47 in | 12 mm
Dimensions Tube Size
-8
Specifications Ball Plating
Chrome Plated
Specifications Bun
EA

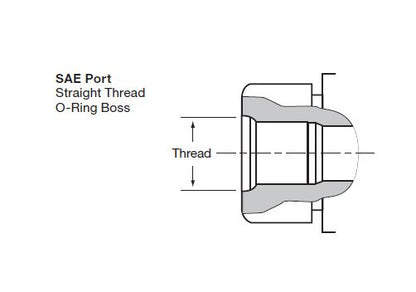

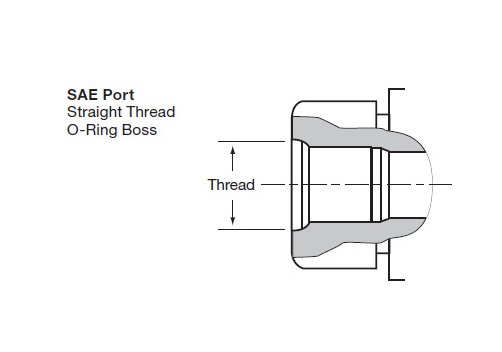

Specifications Connection Standard
SAEJ1926 Ports with ISO 725 Threads and O-Ring Sealing
Specifications Connection Type
SAE
Specifications Division
ACCESSORIES
Specifications Flow Direction
2-Way
Specifications Handle Codes
Offset Aluminum
Specifications Housing Surface Plating
Zinc Plated
Specifications Housing Type
Block Housing
Specifications Industry Standardscertifications
International Organization for Standardization (ISO)
Specifications Locking Device Option
Locking Device
Specifications Material Ball Seal
Polyacetal (Standard)
Specifications Material Body
Carbon Steel
Specifications Material Handle
Aluminum
Specifications Material Housing
Carbon Steel
Specifications Material O Ring
Fluoroelastomer (FPM) (Standard)
Specifications Material Spindle And Ball
Carbon Steel
Specifications Model Code Description
KHB-16SAE-1114-12X-A-L
Specifications Nominal Size
16
Specifications Note For Maximum Pressure
Dependent upon valve and seal materials selected.
Specifications Operating Pressure Max
6000 psi
Specifications Operating Temperature Max
176 ºF
Specifications Operating Temperature Min
14 ºF
Specifications Product
BALL VALVES
Specifications Product Group Family
BALL VALVES-HIGH PRESSURE (?3000 PSI)
Specifications Spindle Plating
Zinc Plated
Specifications Type
Ball Valve
Specifications Valve Size
16
