High-Pressure 2-Way Ball Valves, Carbon Steel & Stainless Steel, 7250 psi
High-Pressure 2-Way Ball Valves, Carbon Steel & Stainless Steel, 7250 psi
SKU:ACC-8fe3ce
Durable high-pressure 2-way ball valves with 7250 psi operating pressure & -40°F to 392°F temperature range. Ideal for industrial use.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
High-Pressure 2-Way Ball Valves, Carbon Steel & Stainless Steel, 7250 psi
$89.99
Quantity: 1
Claim Your Seller Account
High-Pressure 2-Way Ball Valves, Carbon Steel & Stainless Steel, 7250 psi
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

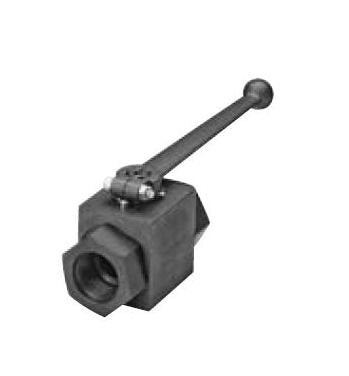

The High-Pressure 2-Way Ball Valves offer precision control and durability for industrial applications. Available in sizes ranging from 1/4" to 2", with BSP or DIN2353 connections, these valves boast a full port design and carbon steel or stainless steel housings. With an impressive operating pressure of up to 7250 psi and a temperature range from 14°F to 176°F, these valves deliver reliability and performance. The ball valves feature chrome-plated ball plating, zinc-plated spindle plating, and a durable aluminum handle for easy operation. Compliant with ISO standards, these valves ensure quality and efficiency.
Product Specifications
Dimensions Connection Size
G1/2
Dimensions Diameter D
15 mm
Dimensions Dimension B
40 mm
Dimensions Dimension D1
G1/2
Dimensions Dimension H
62 mm
Dimensions Dimension H1
20 mm
Dimensions Dimension H2
46 mm
Dimensions Dimension H3
11 mm
Dimensions Dimension I
16 mm
Dimensions Dimension L
83 mm
Dimensions Dimension L1
47 mm
Dimensions Dimension Sw1
12 mm
Dimensions Dimension Sw2
32 mm
Specifications Ball Plating
Chrome Plated
Specifications Bun
EA
Specifications Connection Gender
Female
Specifications Connection Standard
BSP Ports with ISO 228 Threads
Specifications Connection Type
(BSP) Female Thread
Specifications Division
ACCESSORIES
Specifications Flow Direction
2-Way
Specifications Handle Codes
Straight Aluminum
Specifications Housing Surface Plating
Zinc Plated
Specifications Housing Type
Block Housing
Specifications Industry Standardscertifications
International Organization for Standardization (ISO)
Specifications Locking Device Option
Locking Device
Specifications Material Ball Seal
Polyacetal (Standard)
Specifications Material Body
Carbon Steel
Specifications Material Handle
Aluminum
Specifications Material Housing
Carbon Steel
Specifications Material O Ring
Nitrile Rubber (NBR) (Buna-N)
Specifications Material Spindle And Ball
Carbon Steel
Specifications Model Code Description
KHB-G1/2-1112-11X-A-L
Specifications Operating Pressure Max
7250 psi
Specifications Operating Temperature Max
176 ºF
Specifications Operating Temperature Min
14 ºF
Specifications Product
BALL VALVES
Specifications Product Group Family
BALL VALVES-HIGH PRESSURE (?3000 PSI)
Specifications Spindle Plating
Zinc Plated
Specifications Type
Ball Valve
Specifications Valve Size
16
