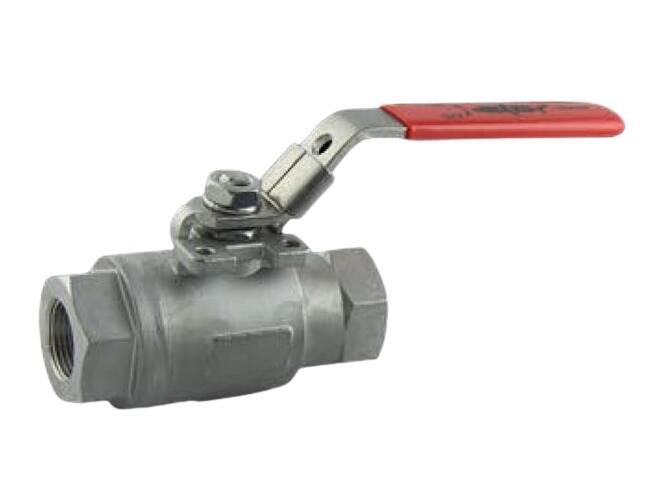

High-Pressure 2in Class 1500 NPT Threaded Ball Valve - 3600S Series
High-Pressure 2in Class 1500 NPT Threaded Ball Valve - 3600S Series
SKU:360-45c5cb
Reliable high-pressure 2in Class 1500 NPT threaded ball valve with ASME B16.34 compliance & fire-safe design.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
High-Pressure 2in Class 1500 NPT Threaded Ball Valve - 3600S Series
$289.99
Quantity: 1
Claim Your Seller Account
High-Pressure 2in Class 1500 NPT Threaded Ball Valve - 3600S Series
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3600S Series Class 1500 NPT Threaded Ball Valve is engineered for high-pressure applications, featuring a reduced port design and pressure rating of 3600 psi. Built with investment casting and ASME B16.34 compliance, this valve ensures reliable performance. It meets industry standards like ASME B16.34, ISO 5211, and NACE MR-0175, offering fire-safe operation and seal-welded construction. With a floating ball and locking lever handle, it guarantees secure flow control and easy operation, making it ideal for industrial and institutional settings.
Product Specifications
Features Features
Investment CastingWall Thickness - ASME B16.34 Class 1500Floating BallFire-Safe Approved Per API607 5th Ed.ISO 5211 Mounting PadLocking Lever HandleSeal WeldedPressure Tested to API 598
Technical Specs Dimension A
1.50 in
Technical Specs Dimension B
6.3 in
Technical Specs Dimension C
4.34 in
Technical Specs Dimension D
10.16 in
Technical Specs Dimension E
3.85 in
Technical Specs Dimension F
2.50 in
Technical Specs Dimension G
0.34 in
Technical Specs Dimension H
0.392 in
Technical Specs Dimension J
0.623 in
Technical Specs Dimension K
2.756 in
Technical Specs Flow Coefficients Cv
120
Technical Specs Industry Standards
American Society of Mechanical Engineers (ASME) B16.34 | International Organization for Standardization (ISO 5211) | National Association of Corrosion Engineers (NACE) MR-0175 Compliant
Technical Specs Maximum Torque
750 in·lb
Technical Specs Mounting Pad Sizes
F07
Technical Specs Port Configuration
Reduced Port
Technical Specs Port Size
2 in
Technical Specs Pressure Rating
3600 psi
Technical Specs Pressure Test
BT2HA 36
Technical Specs Pressure Test For Seal Test Water
3300 psi
Technical Specs Pressure Test For Seat Test Air
85 psi
Technical Specs Pressure Test For Shell Test Water
4500 psi
Technical Specs Thread Size L
5/16 in.-18
Technical Specs Thread Type
National Pipe Thread (NPT) | Unified National Coarse Thread (UNC)
Technical Specs Weight
5.633 kg
