High Pressure 3-Piece Ball Valve with 12.7mm Orifice, 1/2" FNPT
High Pressure 3-Piece Ball Valve with 12.7mm Orifice, 1/2" FNPT
SKU:SBV-ce5e7d
SBVH360 3-Piece High Pressure Ball Valve with 12.7mm Orifice & 1/2" FNPT designed for efficiency & safety.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
High Pressure 3-Piece Ball Valve with 12.7mm Orifice, 1/2" FNPT
$89.99
Quantity: 1
Claim Your Seller Account
High Pressure 3-Piece Ball Valve with 12.7mm Orifice, 1/2" FNPT
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

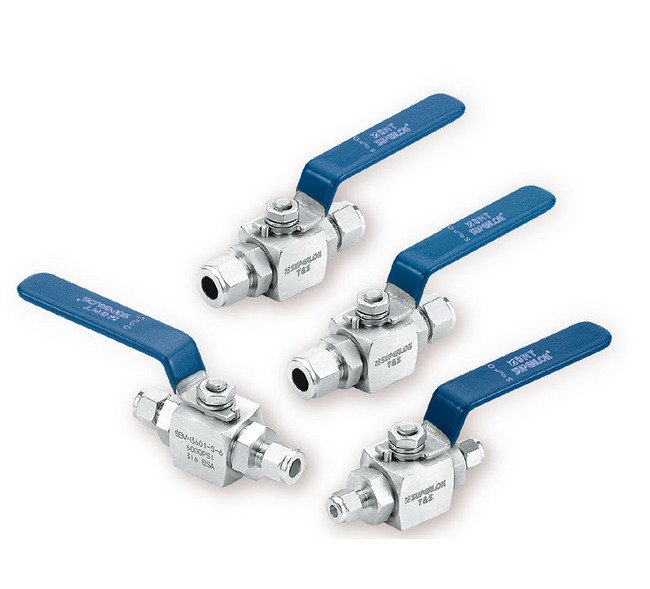

The SBVH360 3-Piece High Pressure Ball Valve features a 12.7mm orifice, 1/2" FNPT end connections, and a compact design for space efficiency. Tested to 1000 psig, it ensures minimal leak rates, offering high flow rates with anti blow-out stem design for operational safety. Each valve undergoes hydrostatic shell testing at 1.5 times the working pressure, meeting stringent quality standards.
Product Specifications
Features Features
Compact designHigh flow rate with maximum orificeVariety of End ConnectionsAnti blow-out stem designEach and every valve is tested at the factoryFire safety design available
Note Note

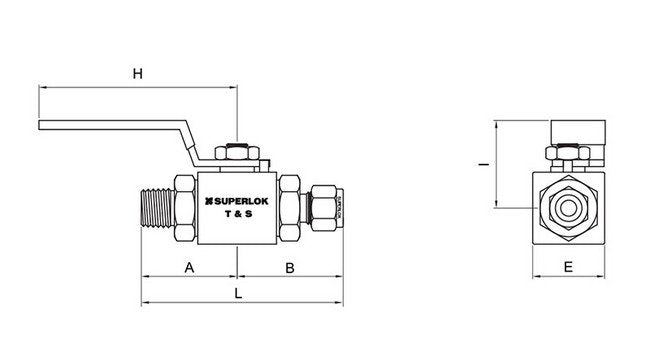

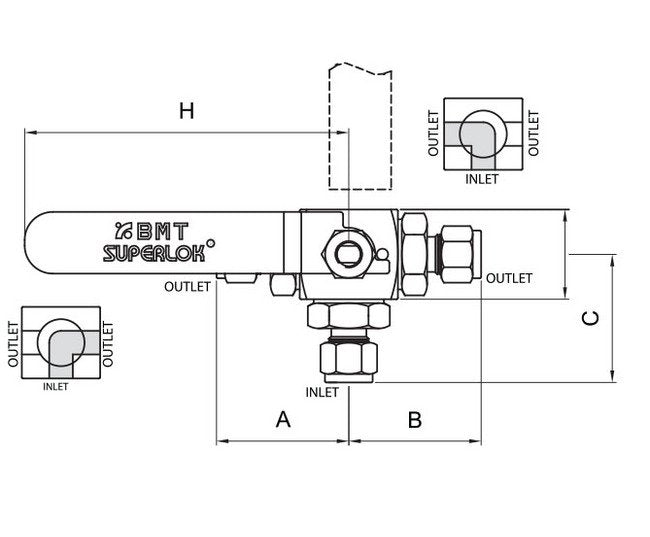

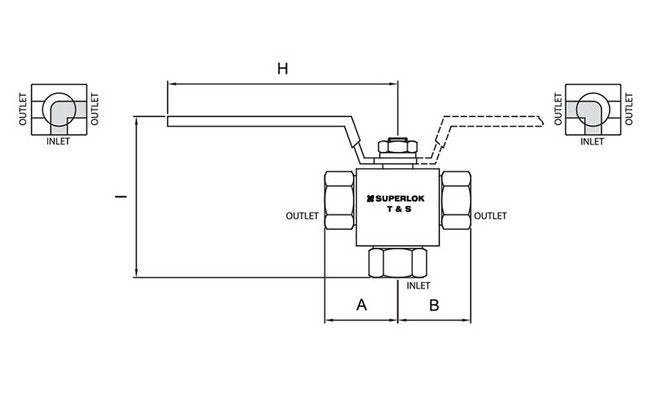

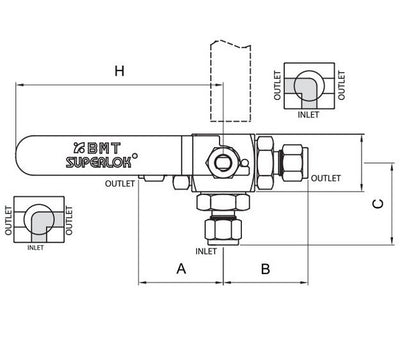

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
45.5 mm
Technical Specs Dimension B
45.5 mm
Technical Specs Dimension E
40.0 mm
Technical Specs Dimension H
165 mm
Technical Specs Dimension I
51.9 mm
Technical Specs Dimension L
91.0 mm
Technical Specs End Connections
1/2 in. Female National Pipe Thread (FNPT)
Technical Specs Flow Coefficients Cv
10
Technical Specs Orifice Size
12.7 mm
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
