High Pressure 4.8mm Trunnion Ball Valve
High Pressure 4.8mm Trunnion Ball Valve
SKU:SBT-61990e
Reliable high-pressure shut-off with 4.8mm orifice, PEEK trunnion bearings, and low torque operation.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
High Pressure 4.8mm Trunnion Ball Valve
$249.99
Quantity: 1
Claim Your Seller Account
High Pressure 4.8mm Trunnion Ball Valve
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SBTH Series 4.8mm Trunnion Ball Valve is a robust solution designed for high-pressure applications up to 10,000 psig. Featuring PEEK trunnion bearings for extended cycle life, this valve offers reliable shut-off functionality with low operating torques. Its two-way design and blow-out resistant ball/stem make it ideal for critical operations, while the compact construction ensures maximum flow efficiency. With stainless steel body material and Superlok® inlet end connections, this valve guarantees durability and performance in extreme conditions.
Product Specifications
Features Features
PEEK trunnion bearings for longer cycle lifeTwo-way and three way designsBlow-out resistant two-piece ball/stemLow operating torquePanel mountable to 9.7mm thicknessHandle indicates direction of flowPositive handle stops100% factory testedCompact, maximum flow design
Note Note

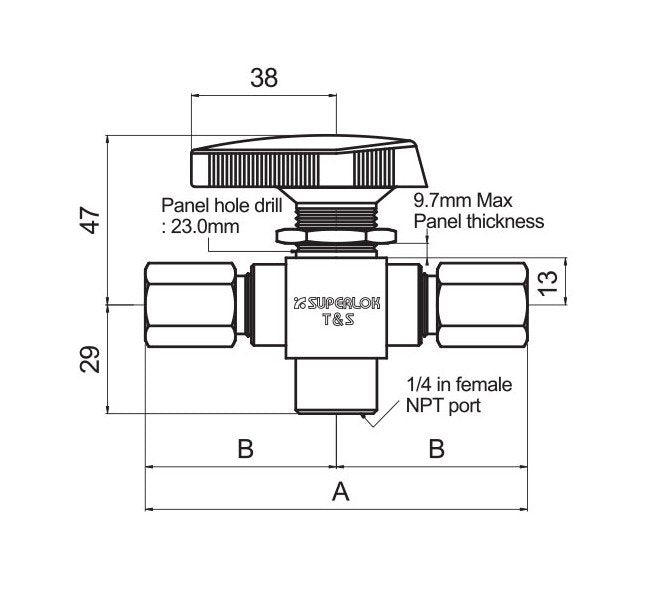

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Configurations
Two-Way Valve
Technical Specs Body Material
Stainless Steel
Technical Specs Dimension A
112 mm
Technical Specs Dimension B
55.9 mm
Technical Specs Flow Coefficients Cv
1.3
Technical Specs Inlet End Connections
10 mm Superlok®
Technical Specs Orifice Size
4.8 mm
Technical Specs Outlet End Connections
10 mm Superlok®
Technical Specs Port Connections
1/8 to 1/2 in. and 6 to 12mm Superlok® Tube Fitting or Female National Pipe Thread (FNPT) end connection
Technical Specs Pressure Rating With Polychlorotrifluoroethylene
6000 psi | 414 bar
Technical Specs Temperature Rating
0 to 450 ºF | -17 to 232 ºC
