High Pressure Anti-Vibration Collet Gland Assembly

Name: High Pressure Anti-Vibration Collet Gland Assembly
Brand: Bishop-Wisecarver
SKU: RIN-2570e9
Price: 89.99 USD
Availability: OutOfStock

SKU:RIN-2570e9

High Pressure Anti-Vibration Collet Gland Assembly - Withstands extreme vibration and shock conditions, up to 150,000 psi.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The High Pressure Anti-Vibration Collet Gland Assembly is designed to withstand extreme conditions of vibration and shock in tubing systems. With pressure capabilities up to 150,000 psi, this assembly features a slotted collet for secure connections. The design, utilizing coned-and-threaded features, ensures a tight and reliable grip on the tubing, making it ideal for demanding industrial applications.

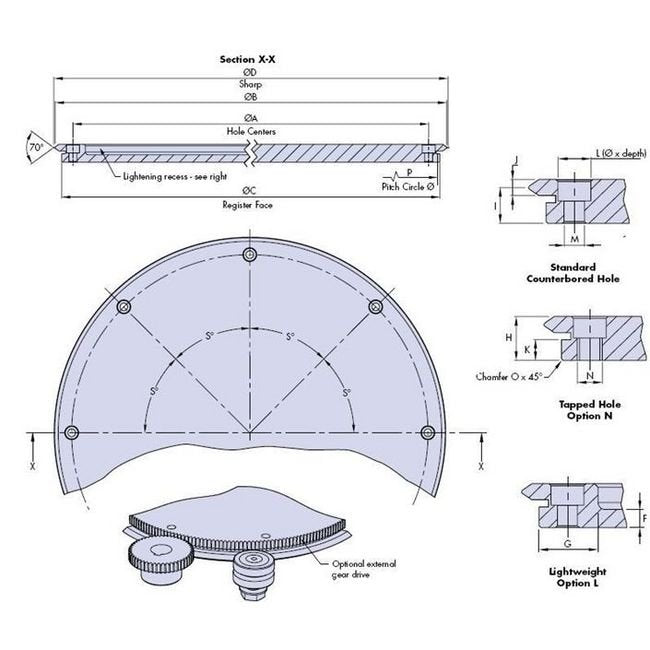

Product Specifications

Manufacturing Notes 0

The internal faces of the lightening recess in the lightweight version are not ground. On stainless steel ring discs, these surfaces are polished

Specifications Dimension A 02

255 mm

Specifications Dimension B

280 mm

Specifications Dimension C

270.4 mm

Specifications Dimension C Tolerance

0.041 mm

Specifications Dimension D

280.74 mm

Specifications Dimension F

5 mm

Specifications Dimension G

15.4 mm

Specifications Dimension H

12.25 mm

Specifications Dimension I 0025

10 mm

Specifications Dimension J

4.5 mm

Specifications Dimension K

5.75 mm

Specifications Dimension L

9 x 6 mm

Specifications Dimension M

5.5 mm

Specifications Dimension M Min

255 mm

Specifications Dimension N

Specifications Dimension O

0.5 mm

Specifications Dimension S Holes Within 02 Of True Position

45 Âº

Specifications Din912 Not Supplied

Specifications External Gear Dimension P

268.8 mm

Specifications External Gear Mod

0.8 mm

Specifications External Gear No Of Teeth

336

Specifications For Use With Bearing

J25

Specifications Light Weight

3.0 kg

Specifications Number Of Holes

Specifications Standard Weight

5.5 kg
