High Pressure Anti-Vibration Collet Gland Assembly

Name: High Pressure Anti-Vibration Collet Gland Assembly
Brand: Bishop-Wisecarver
SKU: RIN-7a84ca
Price: 129.99 USD
Availability: OutOfStock

SKU:RIN-7a84ca

High Pressure Anti-Vibration Collet Gland Assembly, maximum 150,000 psi, for secure and stable grip in extreme conditions.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The High Pressure Anti-Vibration Collet Gland Assembly is designed to withstand extreme conditions of vibration and shock in tubing systems. With a maximum pressure rating of 150,000 psi, this assembly features a slotted collet for secure grip and stability. The unique design ensures a tight and reliable connection, making it ideal for high-pressure applications. With heights of 1.38 inches and 1.88 inches, and an outside diameter tubing size of 5/16 inches (7.94 mm), this assembly offers durability and performance under challenging operational environments.

Product Specifications

Manufacturing Notes 0

The internal faces of the lightening recess in the lightweight version are not ground. On stainless steel ring discs, these surfaces are polished

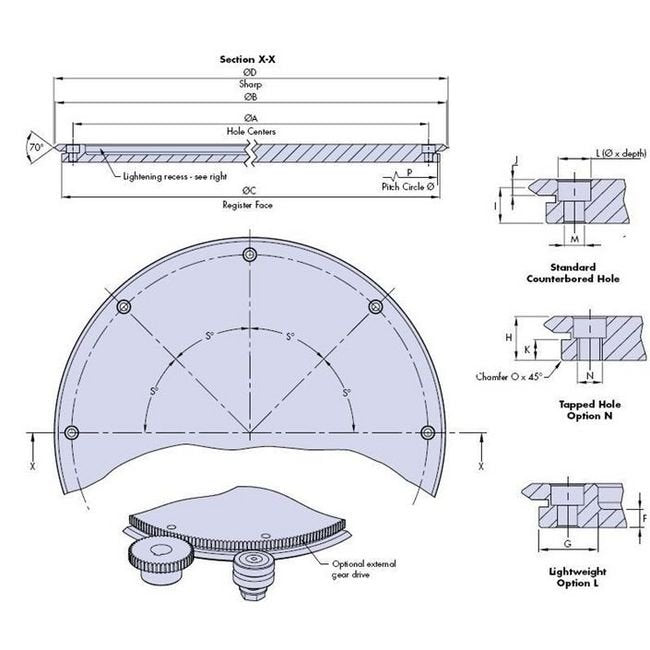

Specifications Dimension A 02

468 mm

Specifications Dimension B

512 mm

Specifications Dimension C

494 mm

Specifications Dimension C Tolerance

0.046 mm

Specifications Dimension D

512.74 mm

Specifications Dimension F

5 mm

Specifications Dimension G

26 mm

Specifications Dimension H

15.5 mm

Specifications Dimension I 0025

12.5 mm

Specifications Dimension J

6 mm

Specifications Dimension K

7 mm

Specifications Dimension L

9 x 6 mm

Specifications Dimension M

6.8 mm

Specifications Dimension M Min

468 mm

Specifications Dimension N

Specifications Dimension O

0.5 mm

Specifications Dimension S Holes Within 02 Of True Position

30 Âº

Specifications Din912 Not Supplied

Specifications External Gear Dimension P

492 mm

Specifications External Gear Mod

1 mm

Specifications External Gear No Of Teeth

492

Specifications For Use With Bearing

J34

Specifications Light Weight

12.2 kg

Specifications Number Of Holes

Specifications Standard Weight

23.6 kg
