High Pressure Anti-Vibration Collet Gland Assembly - Medium Pressure
High Pressure Anti-Vibration Collet Gland Assembly - Medium Pressure
SKU:RIN-fbe815
Experience unparalleled durability with the High Pressure Anti-Vibration Collet Gland Assembly - Medium Pressure, designed for extreme vibration conditions and pressures up to 20000 psi.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
High Pressure Anti-Vibration Collet Gland Assembly - Medium Pressure
$199.99
Quantity: 1
Claim Your Seller Account
High Pressure Anti-Vibration Collet Gland Assembly - Medium Pressure
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Pressure Anti-Vibration Collet Gland Assembly - Medium Pressure, from the Series KCBGLX line, is engineered to withstand extreme vibration and shock conditions in tubing systems. With the ability to handle pressures up to 20000 psi, this assembly strengthens the entire structure by reducing stress concentrations, providing virtually unlimited vibrational fatigue life. Made of Type 316 stainless steel with dry film moly lubricant, this assembly features a less complex and economical design than other vibration-resistant connections. It offers a wedge-type gripping action, interchanging seamlessly with standard Autoclave Engineers medium pressure connections for reliable performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Manufacturing Notes 0
The internal faces of the lightening recess in the lightweight version are not ground. On stainless steel ring discs, these surfaces are polished

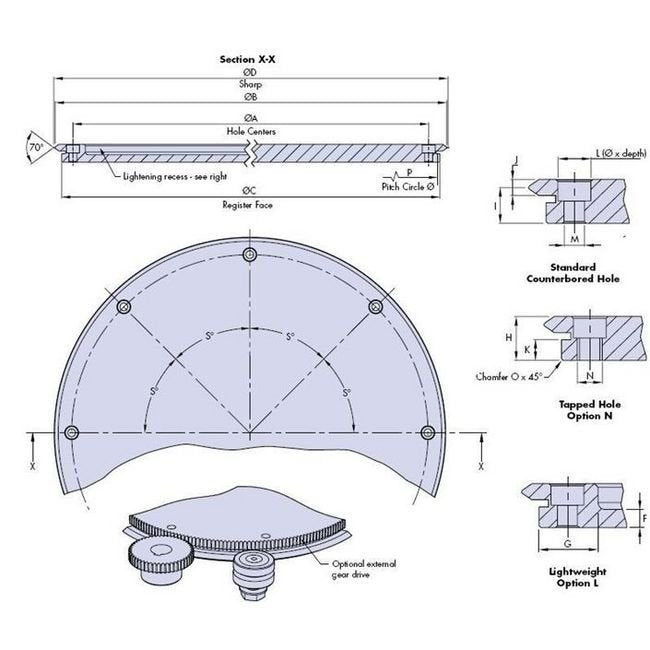

Specifications Dimension A 02
159 mm
Specifications Dimension B
184 mm
Specifications Dimension C
174.4 mm
Specifications Dimension C Tolerance
0.039 mm
Specifications Dimension D
184.74 mm
Specifications Dimension F
5 mm
Specifications Dimension G
15.4 mm
Specifications Dimension H
12.25 mm
Specifications Dimension I 0025
10 mm
Specifications Dimension J
4.5 mm
Specifications Dimension K
5.75 mm
Specifications Dimension L
9 x 6 mm
Specifications Dimension M
5.5 mm
Specifications Dimension M Min
159 mm
Specifications Dimension N
M8
Specifications Dimension O
0.5 mm
Specifications Dimension S Holes Within 02 Of True Position
45 º
Specifications Din912 Not Supplied
M5
Specifications External Gear Dimension P
172.8 mm
Specifications External Gear Mod
0.8 mm
Specifications External Gear No Of Teeth
216
Specifications For Use With Bearing
J25
Specifications Light Weight
1.4 kg
Specifications Number Of Holes
8
Specifications Standard Weight
2.3 kg
