High Pressure Ball Check Valve - 43000 psi

Name: High Pressure Ball Check Valve - 43000 psi
Brand: Bishop-Wisecarver
SKU: INT-724e60
Price: 99.99 USD
Availability: OutOfStock

SKU:INT-724e60

Upgrade your systems with our reliable High Pressure Ball Check Valve for seamless fluid control. Prevent reverse flow with ease.

$99.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your fluid control systems with our High Pressure Ball Check Valve, designed to prevent reverse flow and ensure leak-tight shut-off. With a durable all-metal construction rated up to 1200°F, this valve features an integral ball and poppet design for reliable in-line seating without chatter. The 316 Stainless Steel body and components guarantee longevity and performance, while the optional low temperature spring extends operational capabilities down to -423°F. Ideal for applications where precision and resilience are paramount.

Product Specifications

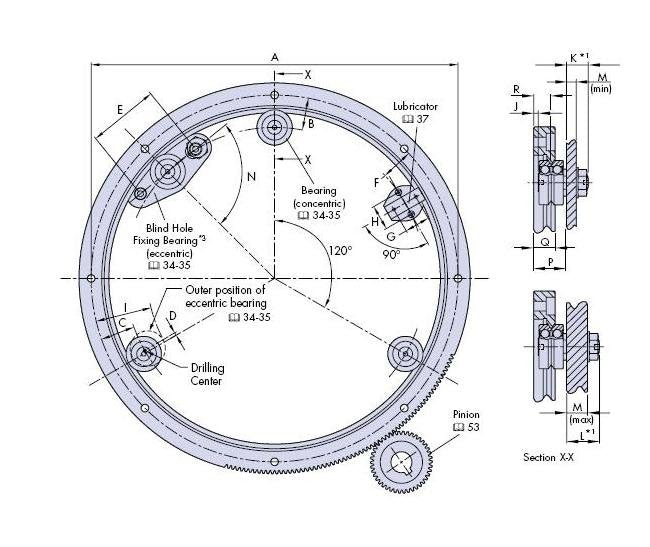

Drilling Positions Dimension B

32.4 mm

Drilling Positions Dimension C

35 mm

Drilling Positions Dimension D

2.5 mm

Drilling Positions Dimension E

60 mm

Drilling Positions Dimension F

31 mm

Drilling Positions Dimension G

22 mm

Drilling Positions Dimension H

25 mm

Manufacturing Notes 0

For 1 : Short or long stud lengths are available for each size of bearing 34-35. Choose according to the required mounting plate thickness.For 2 : Exact theoretical values have been given for `B`, `C` and `D`. Positional accuracy of dimension `B` will determine the axis of the ring. Positional accuracy for dimensions `C` and `D` are not normally critical. Holes for bearing studs should be reamed to tolerance F6 for a sliding fit.For 3 : The eccentric blind hole fixing bearing cannot be used with the RIS 182 ring slide as it clashes with the ring.

Specifications Dimension A

461.5 mm

Specifications Dimension I

55.6 mm

Specifications Dimension J

2.7 mm

Specifications Dimension K

13.8 mm

Specifications Dimension L

22 mm

Specifications Dimension M Max

14.8 mm

Specifications Dimension M Min

5.2 mm

Specifications Dimension N

90 mm

Specifications Dimension P

24 mm

Specifications Dimension Q

15.5 mm

Specifications Dimension R

12.5 mm

Specifications For Use With Bearing

J34
