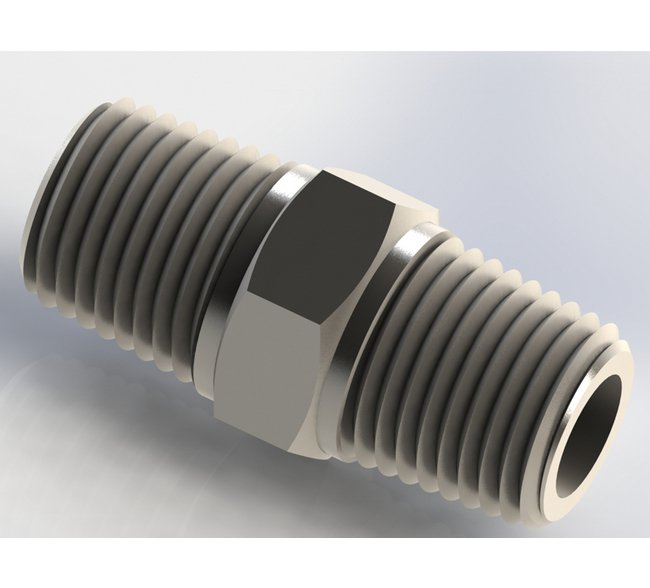

High-Pressure Ball Type Check Valves - NPT Connection, 1/8" NPT Male
High-Pressure Ball Type Check Valves - NPT Connection, 1/8" NPT Male
SKU:CHE-55f6fe
High-Pressure Ball Type Check Valves with NPT Connections for precise flow control in liquids or gases.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
High-Pressure Ball Type Check Valves - NPT Connection, 1/8" NPT Male
$89.99
Quantity: 1
Claim Your Seller Account
High-Pressure Ball Type Check Valves - NPT Connection, 1/8" NPT Male
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

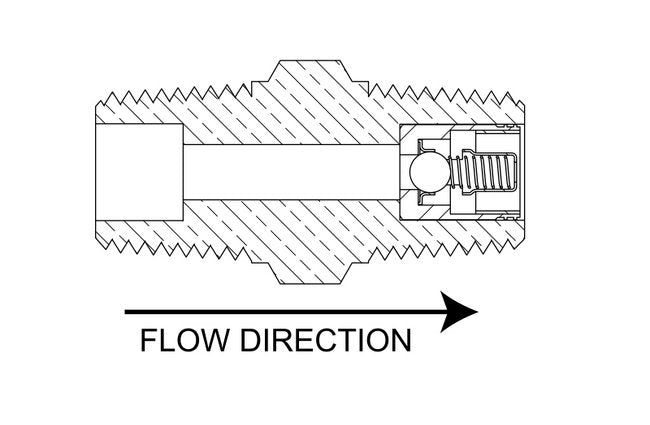

The High-Pressure Ball Type Check Valves with NPT Connections offer superior performance in controlling fluid or gas flow. Built with durable 303 SS material and a 304 SS ball, these valves ensure reliable operation with a low cracking pressure of 2 psig. With a maximum operating pressure of 2000 psig and a maximum temperature of 300°F, they provide long-lasting, high-pressure capability. The metal to metal construction and minimal seat leakage make them ideal for precision applications where reverse flow prevention is crucial. Suitable for a range of liquids or gases, these valves are designed for longevity and efficient operation, meeting the stringent demands of industrial and institutional settings.
Product Specifications

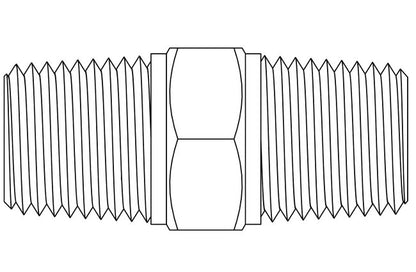

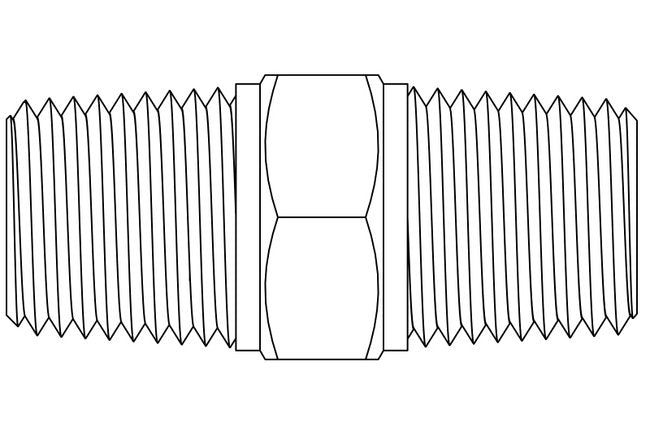

Dimensions Total Length
0.970 in
Dimensions Width Across Flats Hex
7/16 in
Features Features
All metal construction Long life operation Choice of cracking pressure High pressure capability
Flow Data Air Flow At 100 Psig
331 ft³/h
Flow Data Water Flow At 100 Psig
0.8 gpm
Specifications Additional Wetted Material
Loctite 609 / 680
Specifications Ball Material
304 SS
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/8" NPT Male
Specifications Cracking Pressure
2 psig
Specifications Cv
0.081
Specifications Material
303 SS
Specifications Maximum Operating Pressure Gauge
2000 psig
Specifications Maximum Temperature
300 ºF
Specifications Seat Leakage
20 SSCM (max.) air flow at 25 psi differential
