Protect pressure gauges from surges with High Pressure Excess Flow Valves: 60000 psi rating, 316 Stainless Steel build, vertical installation.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
High Pressure Ball Type Excess Flow Valves - Stainless Steel Fittings
$249.99
Quantity: 1
Claim Your Seller Account
High Pressure Ball Type Excess Flow Valves - Stainless Steel Fittings
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Pressure Ball Type Excess Flow Valves are essential for protecting pressure gauges and instrumentation from sudden flow surges and venting during line failures. Crafted from durable 316 Stainless Steel materials, including body, cover, sleeve, and gland, these valves guarantee reliability under extreme pressures up to 60000 psi. Designed for vertical installation with a non-spring loaded ball mechanism, resetting the valve is effortlessly achieved by equalizing pressure across the ball. Ensure optimal performance with frequent inspections to detect O-ring deterioration and replacement as needed. Precision-engineered with a 0.125” orifice and versatile dimensions for secure tubing engagement, these valves are a must-have for industrial applications.
Product Specifications

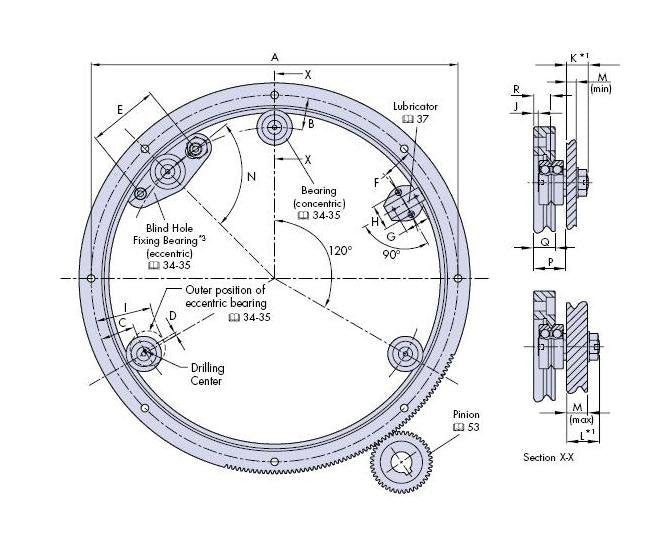

Drilling Positions Dimension B
32.4 mm
Drilling Positions Dimension C
35 mm
Drilling Positions Dimension D
2.5 mm
Drilling Positions Dimension E
60 mm
Drilling Positions Dimension F
31 mm
Drilling Positions Dimension G
22 mm
Drilling Positions Dimension H
25 mm
Manufacturing Notes 0
For 1 : Short or long stud lengths are available for each size of bearing 34-35. Choose according to the required mounting plate thickness.For 2 : Exact theoretical values have been given for `B`, `C` and `D`. Positional accuracy of dimension `B` will determine the axis of the ring. Positional accuracy for dimensions `C` and `D` are not normally critical. Holes for bearing studs should be reamed to tolerance F6 for a sliding fit.For 3 : The eccentric blind hole fixing bearing cannot be used with the RIS 182 ring slide as it clashes with the ring.
Specifications Dimension A
606.5 mm
Specifications Dimension I
55.6 mm
Specifications Dimension J
2.7 mm
Specifications Dimension K
13.8 mm
Specifications Dimension L
22 mm
Specifications Dimension M Max
14.8 mm
Specifications Dimension M Min
5.2 mm
Specifications Dimension N
90 mm
Specifications Dimension P
24 mm
Specifications Dimension Q
15.5 mm
Specifications Dimension R
12.5 mm
Specifications For Use With Bearing
