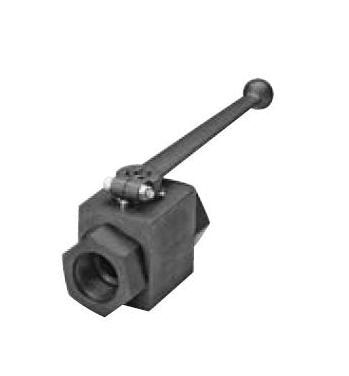

High-Pressure Ball Valve, 2-Way 16mm Carbon Steel
High-Pressure Ball Valve, 2-Way 16mm Carbon Steel
SKU:ACC-cb975d
Precision-engineered High-Pressure Ball Valve for up to 7250 psi, Carbon Steel construction, ISO standards compliant.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
High-Pressure Ball Valve, 2-Way 16mm Carbon Steel
$89.99
Quantity: 1
Claim Your Seller Account
High-Pressure Ball Valve, 2-Way 16mm Carbon Steel
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High-Pressure Ball Valve offers precision control with its BSP Female Thread connection and full port design. Built with Carbon Steel housing and components, this valve operates up to 7250 psi, ideal for demanding industrial applications. With a temperature range from 14 ºF to 176 ºF, it ensures reliable performance. The valve meets International Organization for Standardization (ISO) standards and is designed for high-pressure systems requiring durability and efficiency.
Product Specifications
Dimensions Connection Size
G1/2
Dimensions Diameter D
15 mm
Dimensions Dimension B
40 mm
Dimensions Dimension D1
G1/2
Dimensions Dimension H
62 mm
Dimensions Dimension H1
20 mm
Dimensions Dimension H2
46 mm
Dimensions Dimension H3
11 mm
Dimensions Dimension I
16 mm
Dimensions Dimension L
83 mm
Dimensions Dimension L1
47 mm
Dimensions Dimension Sw1
12 mm
Dimensions Dimension Sw2
32 mm
Specifications Ball Plating
Chrome Plated
Specifications Bun
EA
Specifications Connection Gender
Female
Specifications Connection Standard
BSP Ports with ISO 228 Threads
Specifications Connection Type
(BSP) Female Thread
Specifications Division
ACCESSORIES
Specifications Flow Direction
2-Way
Specifications Handle Codes
Straight Aluminum
Specifications Housing Surface Plating
Zinc Plated
Specifications Housing Type
Block Housing
Specifications Industry Standardscertifications
International Organization for Standardization (ISO)
Specifications Material Ball Seal
Polyacetal (Standard)
Specifications Material Body
Carbon Steel
Specifications Material Handle
Aluminum
Specifications Material Housing
Carbon Steel
Specifications Material O Ring
Fluoroelastomer (FPM) (Standard)
Specifications Material Spindle And Ball
Carbon Steel
Specifications Model Code Description
KHB-G1/2-1114-11X-A
Specifications Operating Pressure Max
7250 psi
Specifications Operating Temperature Max
176 ºF
Specifications Operating Temperature Min
14 ºF
Specifications Product
BALL VALVES
Specifications Product Group Family
BALL VALVES-HIGH PRESSURE (?3000 PSI)
Specifications Spindle Plating
Zinc Plated
Specifications Type
Ball Valve
Specifications Valve Operator
Handle
Specifications Valve Size
16
