High Pressure Ball Valve SBVH360 10.0mm Orifice, 1/4" FNPT
High Pressure Ball Valve SBVH360 10.0mm Orifice, 1/4" FNPT
SKU:SBV-e9ffc2
Versatile high pressure ball valve with 10.0mm orifice, 1/4" FNPT, and superior safety features for industrial use.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
High Pressure Ball Valve SBVH360 10.0mm Orifice, 1/4" FNPT
$89.99
Quantity: 1
Claim Your Seller Account
High Pressure Ball Valve SBVH360 10.0mm Orifice, 1/4" FNPT
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

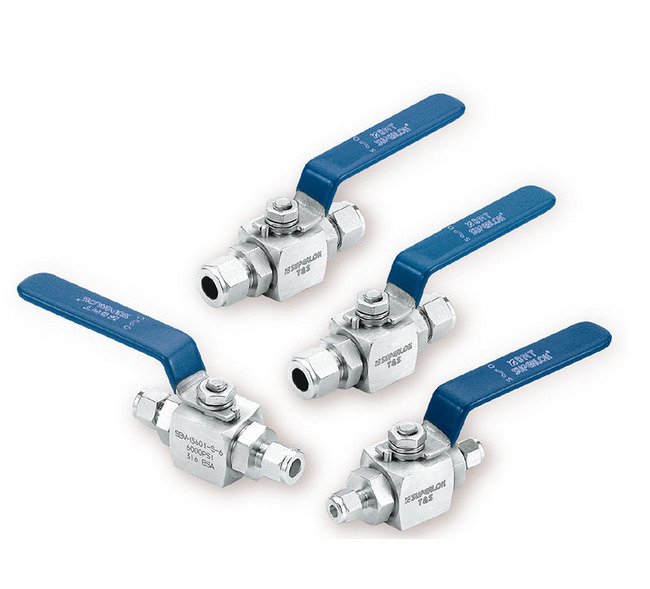

The SBVH360 Three-Piece High Pressure Type Ball Valve features a compact design, high flow rate with a maximum 10.0mm orifice, and various end connections including 1/4" FNPT. Each valve undergoes rigorous testing to ensure quality and safety, meeting hydrostatic shell test standards at 1.5 times working pressure. With anti blow-out stem design and fire safety options, this valve is reliable and versatile for industrial applications.
Product Specifications
Features Features
Compact designHigh flow rate with maximum orificeVariety of End ConnectionsAnti blow-out stem designEach and every valve is tested at the factoryFire safety design available
Note Note

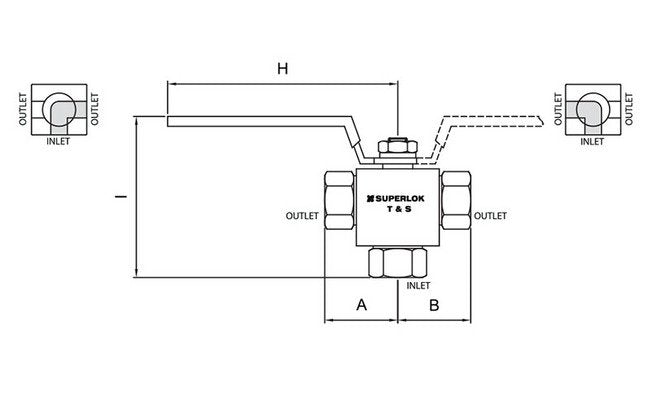

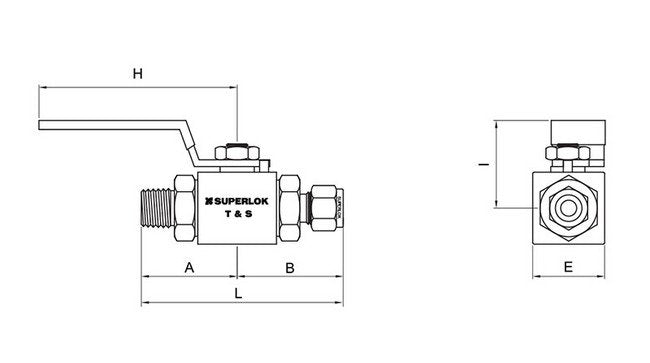

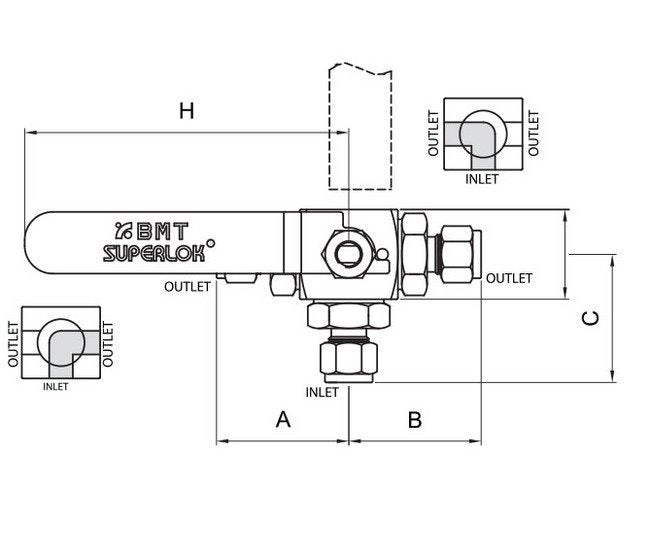

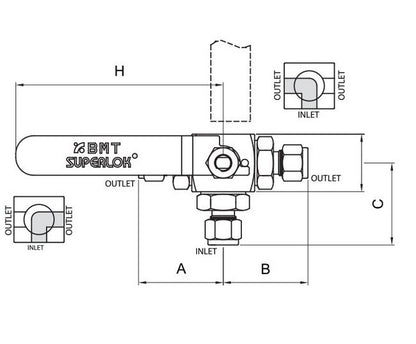

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
37.0 mm
Technical Specs Dimension B
37.0 mm
Technical Specs Dimension E
32.0 mm
Technical Specs Dimension H
115 mm
Technical Specs Dimension I
38.5 mm
Technical Specs Dimension L
74.0 mm
Technical Specs End Connections
1/4 in. Female National Pipe Thread (FNPT)
Technical Specs Flow Coefficients Cv
7.5
Technical Specs Orifice Size
10.0 mm
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
