High Pressure Ball Valve SBVH360 - 10.0mm Orifice, 1/4 in. MNPT Connections
High Pressure Ball Valve SBVH360 - 10.0mm Orifice, 1/4 in. MNPT Connections
SKU:SBV-793994
Enhance fluid control with the SBVH360 High Pressure Ball Valve. Compact, high-flow design with rigorous testing for safety and reliability.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
High Pressure Ball Valve SBVH360 - 10.0mm Orifice, 1/4 in. MNPT Connections
$99.99
Quantity: 1
Claim Your Seller Account
High Pressure Ball Valve SBVH360 - 10.0mm Orifice, 1/4 in. MNPT Connections
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

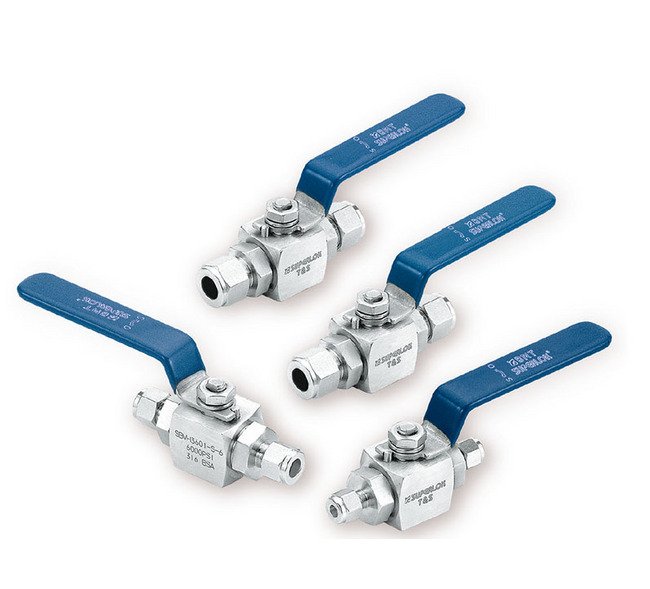

Enhance your industrial fluid control with the SBVH360 Three-Piece High Pressure Type Ball Valve. Featuring a compact design, high flow rate, and anti blow-out stem design, this valve ensures optimal performance. Each valve undergoes rigorous testing, meeting industry standards for safety and reliability. With a variety of end connections and fire safety design available, the SBVH360 is a versatile solution for demanding environments.
Product Specifications
Features Features
Compact designHigh flow rate with maximum orificeVariety of End ConnectionsAnti blow-out stem designEach and every valve is tested at the factoryFire safety design available
Note Note

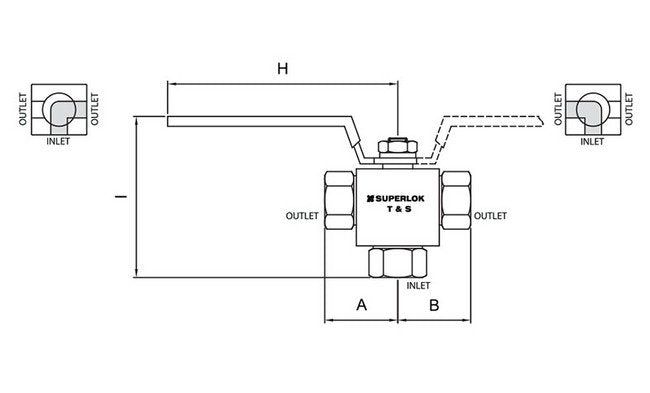

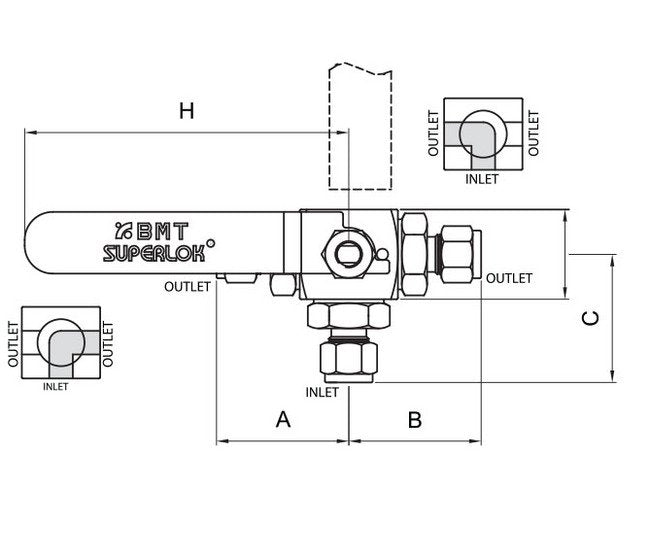

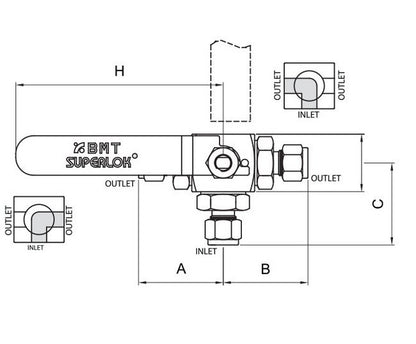

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.

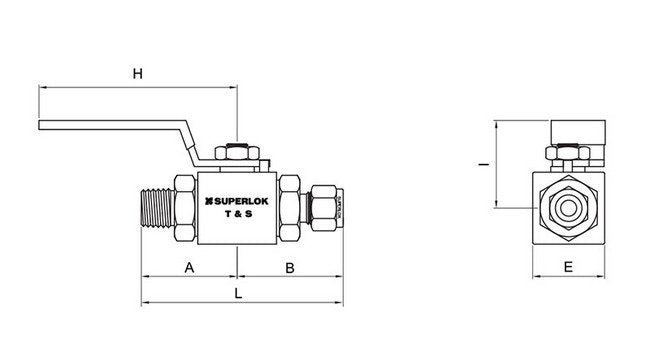

Technical Specs Dimension A
42.1 mm
Technical Specs Dimension B
42.1 mm
Technical Specs Dimension E
32.0 mm
Technical Specs Dimension H
115 mm
Technical Specs Dimension I
38.5 mm
Technical Specs Dimension L
84.2 mm
Technical Specs End Connections
1/4 in. Male National Pipe Thread (MNPT)
Technical Specs Flow Coefficients Cv
3.7
Technical Specs Orifice Size
10.0 mm
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
