High Pressure Ball Valve SBVH360 10.0mm Orifice Size, 1/4in SUPERLOK® End Connections
High Pressure Ball Valve SBVH360 10.0mm Orifice Size, 1/4in SUPERLOK® End Connections
SKU:SBV-5d6cc9
Precision and durability combined. SBVH360 High Pressure Ball Valve with 10.0mm Orifice & 1/4in SUPERLOK® End Connections. Ideal for industrial applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
High Pressure Ball Valve SBVH360 10.0mm Orifice Size, 1/4in SUPERLOK® End Connections
$129.99
Quantity: 1
Claim Your Seller Account
High Pressure Ball Valve SBVH360 10.0mm Orifice Size, 1/4in SUPERLOK® End Connections
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

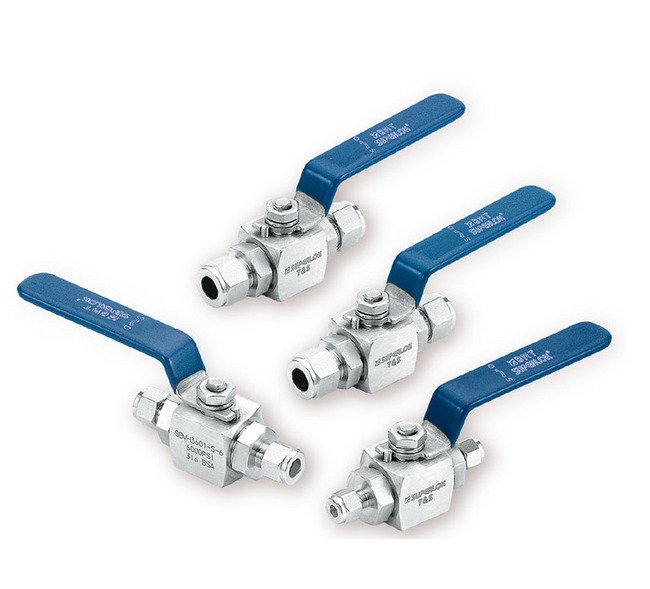

The SBVH360 Three-Piece High Pressure Type Ball Valve offers precise control and durability for various industrial applications. With a 10.0mm orifice size and high flow rate, this valve ensures efficient performance. Featuring anti-blowout stem design and compact construction, it guarantees reliability under extreme conditions. Every valve undergoes rigorous testing to meet industry standards, including fire safety design options, making it ideal for government and institutional procurement requirements.
Product Specifications
Features Features
Compact designHigh flow rate with maximum orificeVariety of End ConnectionsAnti blow-out stem designEach and every valve is tested at the factoryFire safety design available
Note Note

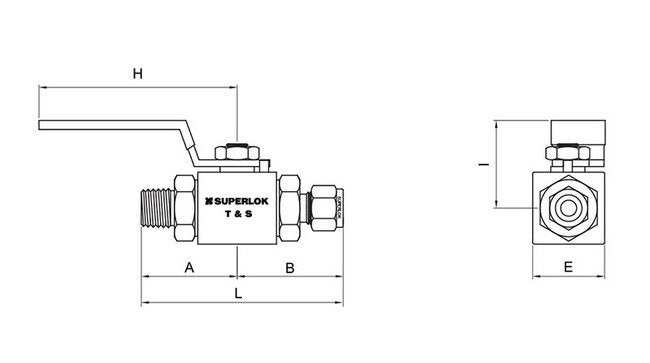

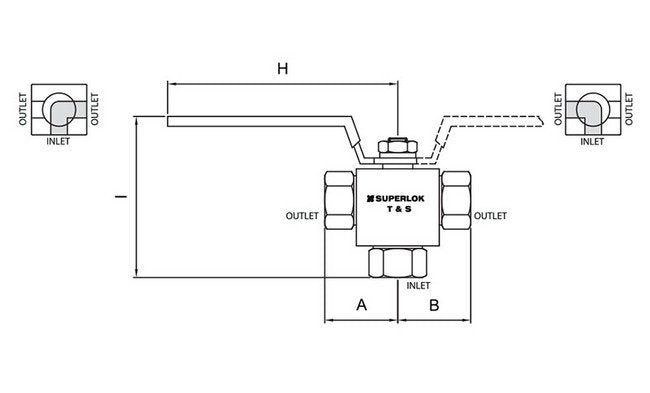

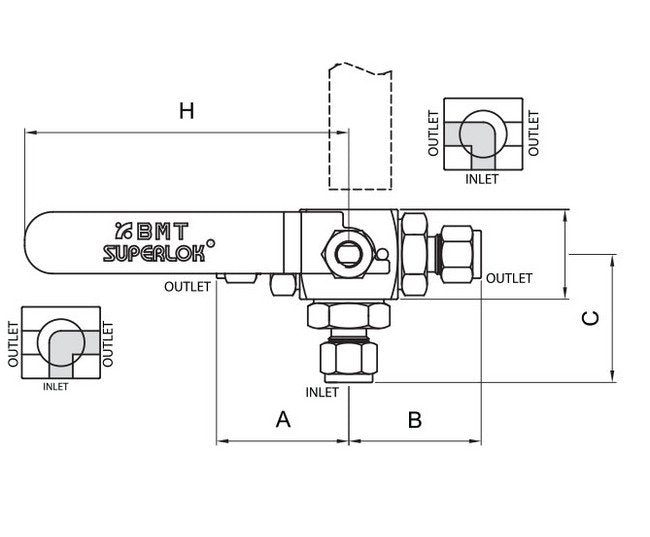

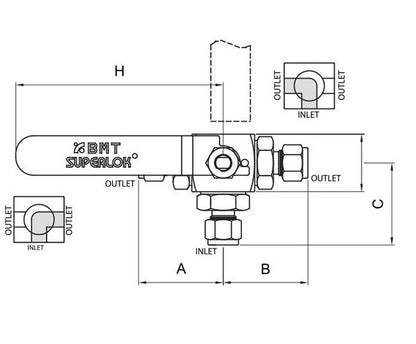

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
45.7 mm
Technical Specs Dimension B
45.7 mm
Technical Specs Dimension E
32.0 mm
Technical Specs Dimension H
115 mm
Technical Specs Dimension I
38.5 mm
Technical Specs Dimension L
91.4 mm
Technical Specs End Connections
1/4 in. SUPERLOK®
Technical Specs Flow Coefficients Cv
1.20
Technical Specs Orifice Size
10.0 mm
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
