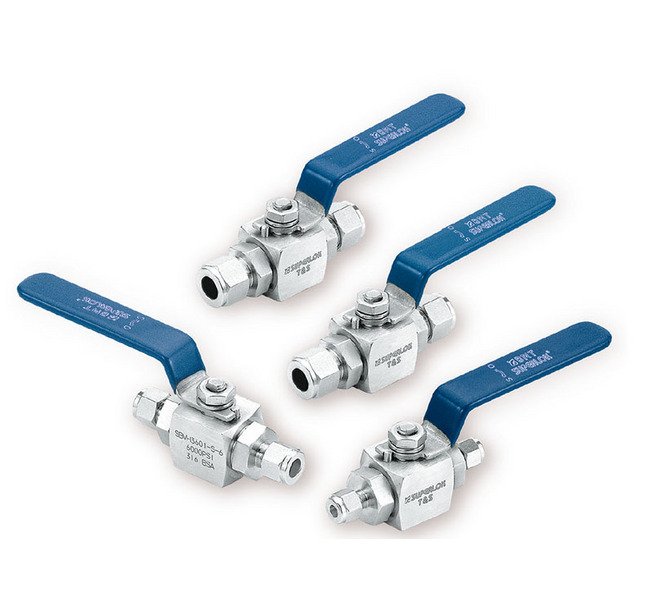

The SBVH360 Three-Piece High Pressure Type Ball Valve features a compact design with a high flow rate, anti blow-out stem, and fire safety design. Tested meticulously at the factory for reliability, it offers a maximum orifice size of 19.0mm and 1-inch Female National Pipe Thread (FNPT) end connections. Suitable for intense industrial applications, this valve ensures efficient performance and durability while meeting strict quality standards.
Product Specifications
Features Features
Compact designHigh flow rate with maximum orificeVariety of End ConnectionsAnti blow-out stem designEach and every valve is tested at the factoryFire safety design available
Note Note

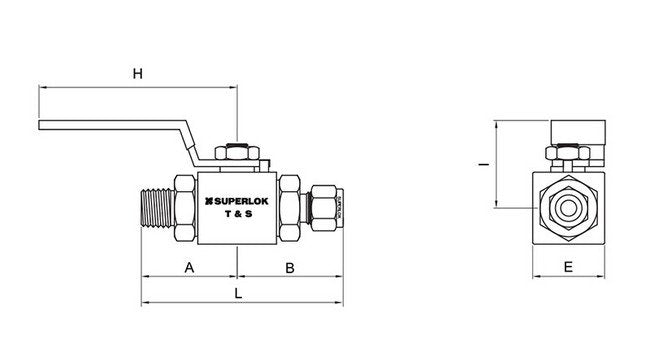

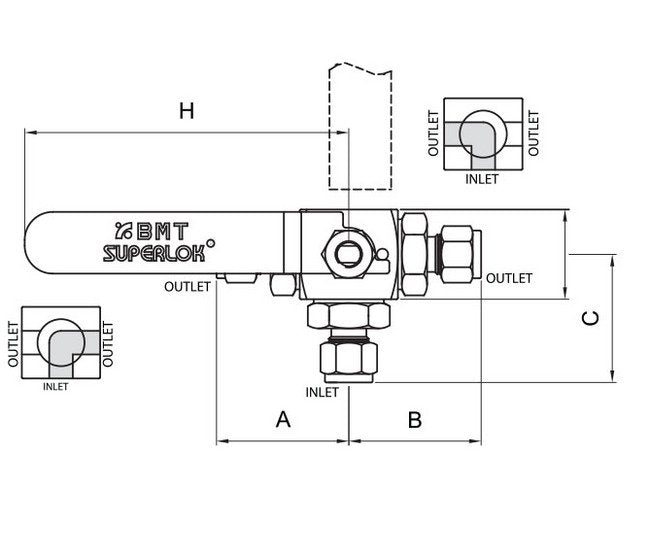

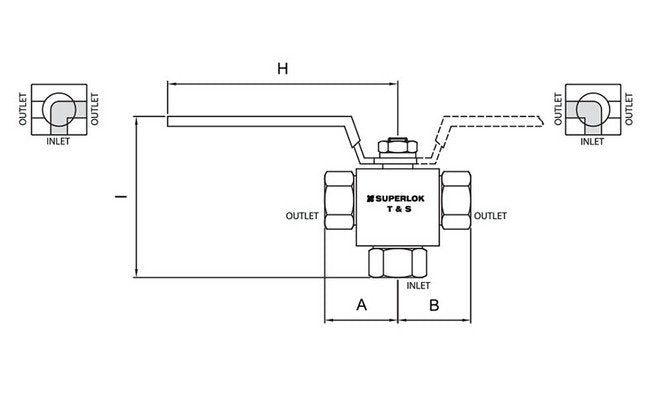

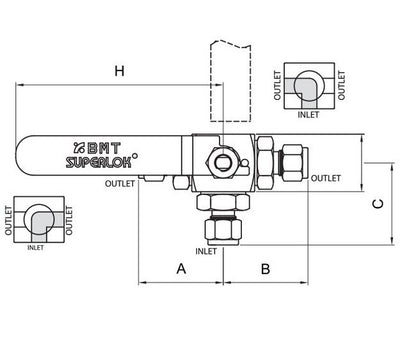

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
62.5 mm
Technical Specs Dimension B
62.5 mm
Technical Specs Dimension E
50.0 mm
Technical Specs Dimension H
165 mm
Technical Specs Dimension I
57 mm
Technical Specs Dimension L
125.0 mm
Technical Specs End Connections
1 in. Female National Pipe Thread (FNPT)
Technical Specs Flow Coefficients Cv
30
Technical Specs Orifice Size
19.0 mm
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
