High Pressure Bolt Type Test Plug - 147 Series 3.91in Dia

Name: High Pressure Bolt Type Test Plug - 147 Series 3.91in Dia
Brand: Parker / Autoclave Engineers
SKU: HIG-7a61a8
Price: 79.99 USD
Availability: OutOfStock

SKU:HIG-7a61a8

Secure high-pressure installations with the 147 Series Bolt Type Test Plug. Maximum safety and performance assured.

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 147 Series 3.91 Inch Maximum Inside Diameter Bolt Type High Pressure Test Plug by Petersen® is engineered for high-pressure applications up to 4500 psig. With a durable urethane seal, this plug ensures secure sealing and reliable performance in various projects including force and water main, lift stations, and fire protection lines. Complying with ASTM standards, this mechanical plug prioritizes safety, efficiency, and versatility for industrial and institutional applications.

Product Specifications

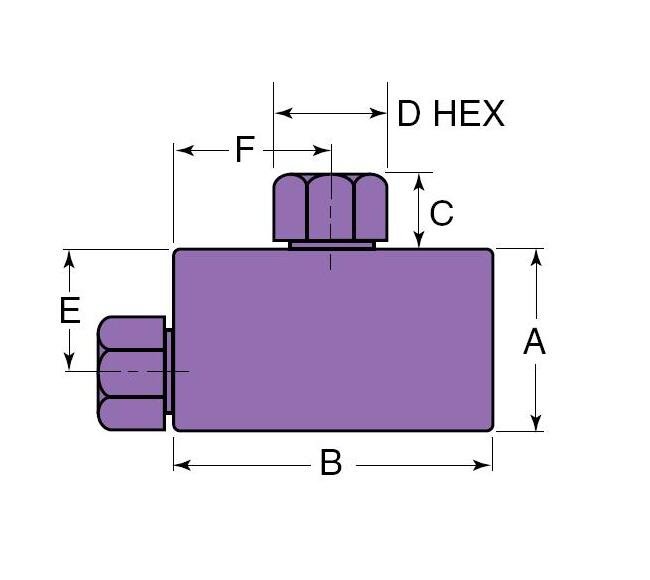

Specifications A Height

1.38 in | 35.05 mm

Specifications Block Thickness

0.75 in | 19.05 mm

Specifications B Width

2.00 in | 50.80 mm

Specifications Connection Type

SW375

Specifications C Height

0.53 in | 13.46 mm

Specifications D Hex

0.75 in | 19.05 mm

Specifications E Length

1.00 in | 25.40 mm

Specifications F Length

1.00 in | 25.40 mm

Specifications Minimum Opening

0.250 in | 6.35 mm

Specifications Outside Diameter Tube

9.53 mm | 3/8 in

Specifications Pressure Rating

15000 psi | 1034.19 bar

Specifications Tubing Engagement Depth

0.69 in | 17.6 mm
