High Pressure Bulkhead Coupling - F250C, 60000 psi
High Pressure Bulkhead Coupling - F250C, 60000 psi
SKU:HEP-cbe5d6
High Pressure Bulkhead Coupling - Ideal for high-pressure applications, compliant with industry standards.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
High Pressure Bulkhead Coupling - F250C, 60000 psi
$59.99
Quantity: 1
Claim Your Seller Account
High Pressure Bulkhead Coupling - F250C, 60000 psi
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Pressure Bulkhead Coupling, designed by Autoclave Engineers, offers a secure connection ideal for high-pressure applications in industries like oil and gas. With a Pressure Rating of 60000 psi and precise specifications including Outside Diameter Tube of 1/4 in, this coupling ensures reliable performance and safety. Additionally, the easy installation process and durable construction make it a sought-after choice for both consumer and institutional buyers. Compliant with stringent industry standards for quality and performance, this coupling is a reliable solution for high-pressure systems.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Manufacturing Notes 0

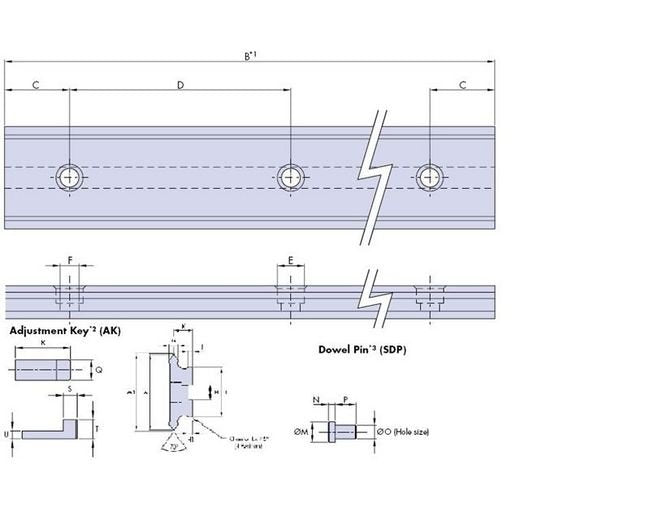

For Dimension B: Standard slide lengths are available in multiples of hole pitch 'D' + (2 x 'C') up to a maximum length per 'B' dimension in table above. Special length slides can be cut to order.For Adjustment Key: Adjustment keys are required at every join between straight slide and curved slide. Please order accordingly (see ordering details). Please note that 'Q' dimension for the TNMS 12 & TNV 20 slides is stepped one end to fit keyway 'H'.For Dowel Pin: Please note that dowel pins for the TNMS 12 slide are not stepped.For Mounting Surface: Slides in their free unmounted state are not necessarily straight. They should be set to the required straightness when bolting down to the mounting surface at assembly.For Dimension A1 & k : For track system requirements dimensions 'A1' and 'K' will be matched with corresponding dimensions 'F' and 'I'.
Specifications Density
10 kg/m
Specifications Dimension A
76 mm
Specifications Dimension A1
76.74 mm
Specifications Dimension B Max
4020 mm
Specifications Dimension C 02
30 mm
Specifications Dimension D
180 mm
Specifications Dimension E
20 mm
Specifications Dimension E Depth
12 mm
Specifications Dimension F
14 mm
Specifications Dimension G
9.21 mm
Specifications Dimension H1
5 mm
Specifications Dimension H 005 000
15 mm
Specifications Dimension I 0025
50 mm
Specifications Dimension J
4.8 mm
Specifications Dimension K
19.5 mm
Specifications Dimension L
0.3 mm
Specifications Dimension M M6
15 mm
Specifications Dimension M Tolerance M6
+0.007 mm | +0.018 mm
Specifications Dimension N
4.75 mm
Specifications Dimension O K6
10 mm
Specifications Dimension O Tolerance K6
+0.002 mm | -0.007 mm
Specifications Dimension P
15 mm
Specifications Dimension Q
15 mm
Specifications Dimension R
32 mm
Specifications Dimension S
10 in
Specifications Dimension T
11 mm
Specifications Dimension U
4.5 mm
Specifications Din912 Not Supplied
M12
