Experience unmatched durability and performance with Autoclave Engineers' High Pressure Bulkhead Couplings. These precision-engineered couplings come complete with glands and collars, ensuring a secure fit for high-pressure applications. With a pressure rating of 40000 psi, these couplings are designed to meet rigorous industrial standards. The tubing engagement depth of 0.84 inches guarantees a reliable connection. For easy installation, consult our mounting hole options. Trust Autoclave Engineers for top-quality fittings that deliver under pressure.
Product Specifications
Manufacturing Notes 0

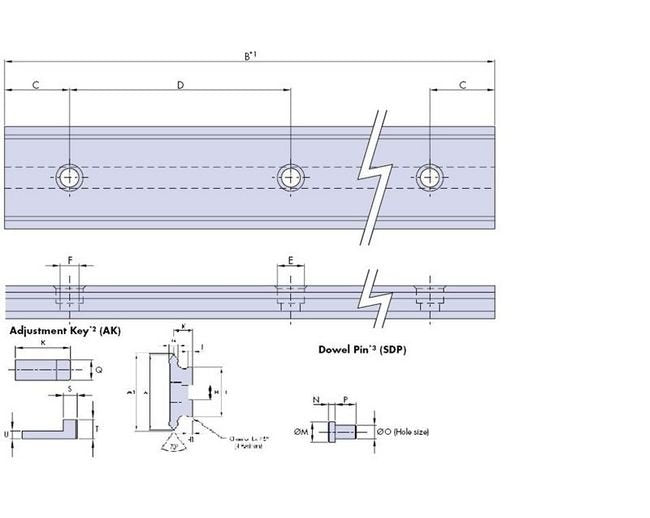

For Dimension B: Standard slide lengths are available in multiples of hole pitch 'D' + (2 x 'C') up to a maximum length per 'B' dimension in table above. Special length slides can be cut to order.For Adjustment Key: Adjustment keys are required at every join between straight slide and curved slide. Please order accordingly (see ordering details). Please note that 'Q' dimension for the TNMS 12 & TNV 20 slides is stepped one end to fit keyway 'H'.For Dowel Pin: Please note that dowel pins for the TNMS 12 slide are not stepped.For Mounting Surface: Slides in their free unmounted state are not necessarily straight. They should be set to the required straightness when bolting down to the mounting surface at assembly.For Dimension A1 & k : For track system requirements dimensions 'A1' and 'K' will be matched with corresponding dimensions 'F' and 'I'.
Specifications Density
3.5 kg/m
Specifications Dimension A
44 mm
Specifications Dimension A1
44.74 mm
Specifications Dimension B Max
4020 mm
Specifications Dimension C 02
30 mm
Specifications Dimension D
90 mm
Specifications Dimension E
11 mm
Specifications Dimension E Depth
6 mm
Specifications Dimension F
7 mm
Specifications Dimension G
6.21 mm
Specifications Dimension H1
3 mm
Specifications Dimension H 005 000
8 mm
Specifications Dimension I 0025
26 mm
Specifications Dimension J
2.3 mm
Specifications Dimension K
12.5 mm
Specifications Dimension L
0.3 mm
Specifications Dimension M M6
8 mm
Specifications Dimension M Tolerance M6
+0.006 mm | +0.015 mm
Specifications Dimension N
2.75 mm
Specifications Dimension O K6
6 mm
Specifications Dimension O Tolerance K6
+0.002 mm | -0.006 mm
Specifications Dimension P
8 mm
Specifications Dimension Q
8 mm
Specifications Dimension R
33 mm
Specifications Dimension S
8 in
Specifications Dimension T
7 mm
Specifications Dimension U
2.7 mm
Specifications Din912 Not Supplied
M6
