High Pressure Bulkhead Couplings - Autoclave Engineers F312C150 Series
High Pressure Bulkhead Couplings - Autoclave Engineers F312C150 Series
SKU:HEP-257398
Reliable Autoclave Engineers High Pressure Bulkhead Couplings for 150,000 psi systems. Secure, leak-free connections for demanding applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
High Pressure Bulkhead Couplings - Autoclave Engineers F312C150 Series
$129.99
Quantity: 1
Claim Your Seller Account
High Pressure Bulkhead Couplings - Autoclave Engineers F312C150 Series
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior performance and reliability with the Autoclave Engineers High Pressure Bulkhead Couplings. Engineered for precision, these couplings feature a robust construction with a pressure rating of 150,000 psi. The F312C150 series ensures a secure connection with an outside diameter tube of 7.94mm. With easy installation and optimal tubing engagement depth, these couplings guarantee leak-free operation. Meet your high-pressure system demands with confidence using Autoclave Engineers' quality fittings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Manufacturing Notes 0

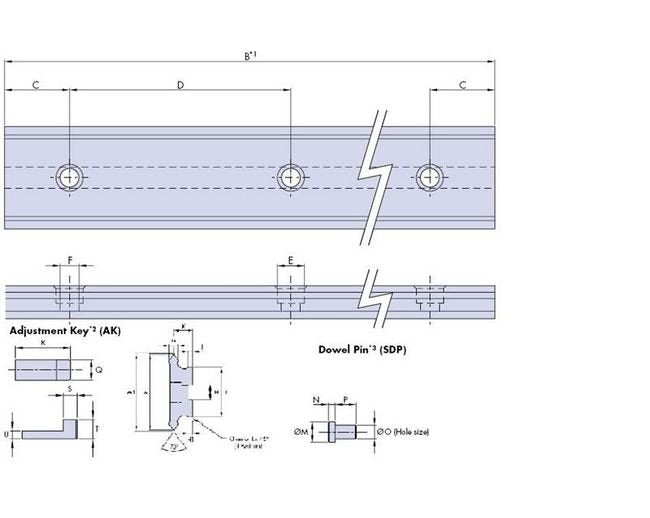

For Dimension B: Standard slide lengths are available in multiples of hole pitch 'D' + (2 x 'C') up to a maximum length per 'B' dimension in table above. Special length slides can be cut to order.For Adjustment Key: Adjustment keys are required at every join between straight slide and curved slide. Please order accordingly (see ordering details). Please note that 'Q' dimension for the TNMS 12 & TNV 20 slides is stepped one end to fit keyway 'H'.For Dowel Pin: Please note that dowel pins for the TNMS 12 slide are not stepped.For Mounting Surface: Slides in their free unmounted state are not necessarily straight. They should be set to the required straightness when bolting down to the mounting surface at assembly.For Dimension A1 & k : For track system requirements dimensions 'A1' and 'K' will be matched with corresponding dimensions 'F' and 'I'.
Specifications Density
1.5 kg/m
Specifications Dimension A
25 mm
Specifications Dimension A1
25.74 mm
Specifications Dimension B Max
4020 mm
Specifications Dimension C 02
30 mm
Specifications Dimension D
90 mm
Specifications Dimension E
10 mm
Specifications Dimension E Depth
5 mm
Specifications Dimension F
5.5 mm
Specifications Dimension G
4.71 mm
Specifications Dimension H1
2.5 mm
Specifications Dimension H 005 000
6 mm
Specifications Dimension I 0025
15 mm
Specifications Dimension J
2.6 mm
Specifications Dimension K
10 mm
Specifications Dimension L
0.3 mm
Specifications Dimension M M6
6 mm
Specifications Dimension M Tolerance M6
+0.004 mm | +0.012 mm
Specifications Dimension N
2.25 mm
Specifications Dimension O K6
4 mm
Specifications Dimension O Tolerance K6
+0.002 mm | -0.006 mm
Specifications Dimension P
6 mm
Specifications Dimension Q
6 mm
Specifications Dimension R
32 mm
Specifications Dimension S
7 in
Specifications Dimension T
6 mm
Specifications Dimension U
2.2 mm
Specifications Din912 Not Supplied
M5
