Upgrade your high-pressure systems with Autoclave Engineers High Pressure Bulkhead Couplings for secure, reliable connections in demanding environments.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
High Pressure Bulkhead Couplings - Autoclave Engineers Fittings
$89.99
Quantity: 1
Claim Your Seller Account
High Pressure Bulkhead Couplings - Autoclave Engineers Fittings
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your high-pressure systems with Autoclave Engineers High Pressure Bulkhead Couplings. Designed for robust performance, these couplings feature a pressure rating of 60000 psi, ensuring reliable connections in demanding applications. With precise dimensions and corrosion-resistant materials, these fittings offer a secure fit and longevity. Compliant with industry standards, these couplings are ideal for both consumer and institutional buyers seeking top-tier performance and durability.
Product Specifications
Manufacturing Notes 0

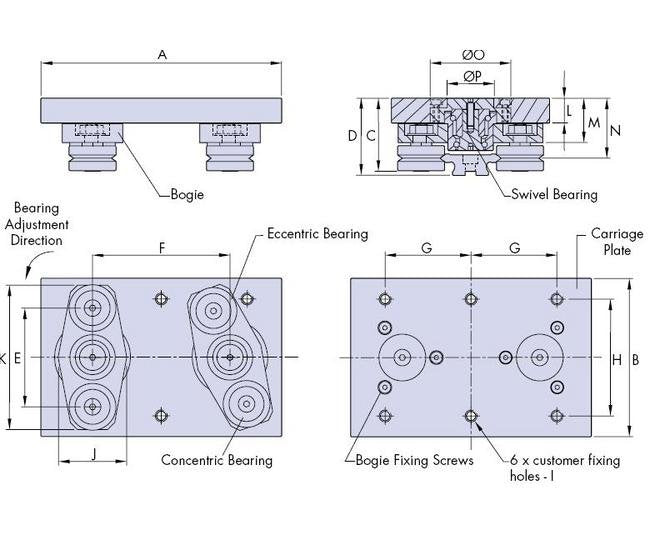

1. In rare cases where adjustment of the eccentric bearings is required, the bogies must be removed from the carriage plate and bolted instead to the adjustment brace. This will mimic the carriage and provide access to the fixing nuts allowing adjustment of the eccentric bearings to take place. 2. Please note that floating bearings 36 cannot be supplied with bogie bearings
Specifications Adjustment Brake
AB-44
Specifications Dimension A
175 mm
Specifications Dimension B
115 mm
Specifications Dimension C
53.8 mm
Specifications Dimension D
56.5 mm
Specifications Dimension E
71.9 mm
Specifications Dimension F
100 mm
Specifications Dimension G 01
62.5 mm
Specifications Dimension H 01
85 mm
Specifications Dimension I
M8
Specifications Dimension J
53 mm
Specifications Dimension K
105 mm
Specifications Dimension L
18 mm
Specifications Dimension M
32.5 mm
Specifications Dimension N
44 mm
Specifications Dimension O
59 mm
Specifications Dimension P
34 mm
Specifications For Use With
TR 44
