High Pressure Carbon Steel Ball Valve, 2-Way 1/4"-2"
High Pressure Carbon Steel Ball Valve, 2-Way 1/4"-2"
SKU:ACC-d578c2
High Pressure Carbon Steel Ball Valve for precision control in high-pressure systems. Full port design, up to 7250 psi operating pressure, and durable construction.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
High Pressure Carbon Steel Ball Valve, 2-Way 1/4"-2"
$149.99
Quantity: 1
Claim Your Seller Account
High Pressure Carbon Steel Ball Valve, 2-Way 1/4"-2"
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Meet high-pressure demands with precision using our High Pressure Carbon Steel Ball Valve. This 2-way valve features a full port design, sustaining up to 7250 psi operating pressure. Crafted from durable carbon steel with a variety of seal material options, this valve ensures reliable performance in temperatures ranging from 14 ºF to 176 ºF. Designed for versatility, efficiency, and durability, our ball valve is suitable for a wide range of applications, making it the top choice for industrial and institutional settings.
Product Specifications
Dimensions Connection Size
1-1/16-12 UN
Dimensions Diameter D
0.79 in | 20 mm
Dimensions Dimension A
7.88 in | 200 mm
Dimensions Dimension B
1.89 in | 48 mm
Dimensions Dimension H
2.95 in | 75 mm
Dimensions Dimension H1
2.24 in | 57 mm
Dimensions Dimension H2
0.43 in | 11 mm
Dimensions Dimension H3
0.96 in | 24.5 mm
Dimensions Dimension H4
2.28 in | 58 mm
Dimensions Dimension L
3.74 in | 95 mm
Dimensions Dimension Sq
0.55 in | 14 mm
Dimensions Tube Size
-12
Specifications Ball Plating
Chrome Plated
Specifications Bun
EA
Specifications Connection Standard

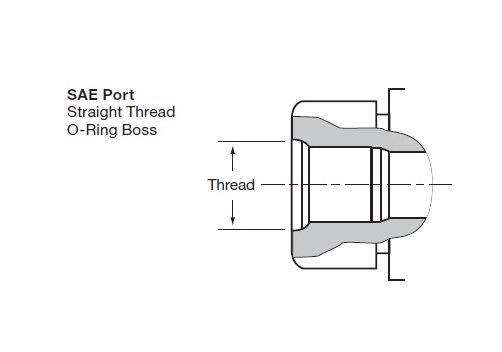

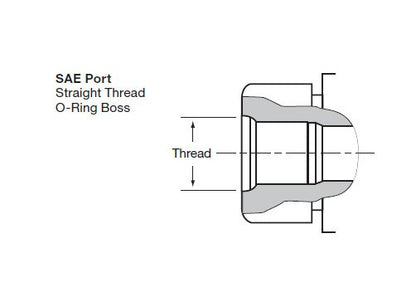

SAEJ1926 Ports with ISO 725 Threads and O-Ring Sealing
Specifications Connection Type
SAE
Specifications Division
ACCESSORIES
Specifications Flow Direction
2-Way
Specifications Handle Codes
Straight Aluminum
Specifications Housing Surface Plating
Zinc Plated
Specifications Housing Type
Block Housing
Specifications Industry Standardscertifications
International Organization for Standardization (ISO)
Specifications Locking Device Option
Locking Device with 5 amp Limit Switch, Available for sizes 20-50 (Not available with PTFE Spindle Seals)
Specifications Material Ball Seal
Polyacetal (Standard)
Specifications Material Body
Carbon Steel
Specifications Material Handle
Aluminum
Specifications Material Housing
Carbon Steel
Specifications Material O Ring
Fluoroelastomer (FPM) (Standard)
Specifications Material Spindle And Ball
Carbon Steel
Specifications Model Code Description
KHB-20SAE-1114-11X-A-LS
Specifications Nominal Size
20
Specifications Note For Maximum Pressure
Dependent upon valve and seal materials selected.
Specifications Operating Pressure Max
6000 psi
Specifications Operating Temperature Max
176 ºF
Specifications Operating Temperature Min
14 ºF
Specifications Product
BALL VALVES
Specifications Product Group Family
BALL VALVES-HIGH PRESSURE (?3000 PSI)
Specifications Spindle Plating
Zinc Plated
Specifications Type
Ball Valve
Specifications Valve Size
20
