High-Pressure Check Valve - 1/2" NPT, 1.50 psi Cracking Pressure

Name: High-Pressure Check Valve - 1/2" NPT, 1.50 psi Cracking Pressure
Brand: Check-All Valve Mfg. Co.
SKU: U1A-18ead4
Price: 129.99 USD
Availability: OutOfStock

SKU:U1A-18ead4

High-Pressure Check Valve for 1/2" NPT with 1.50 psi Cracking Pressure - Reliable and Versatile Solution

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

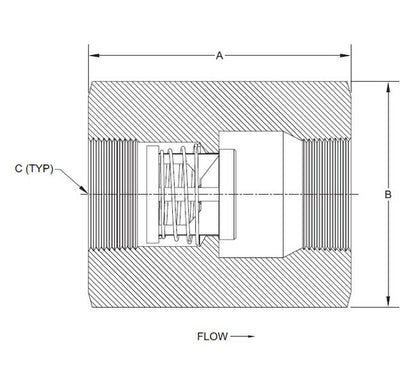

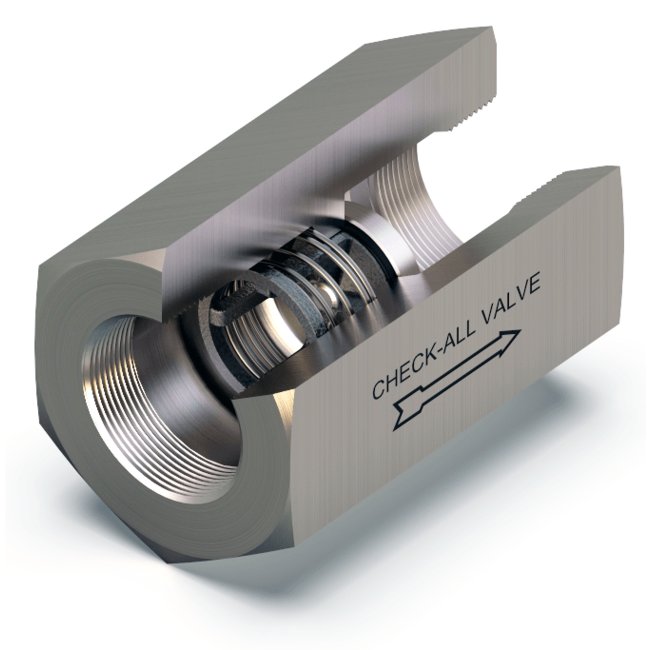

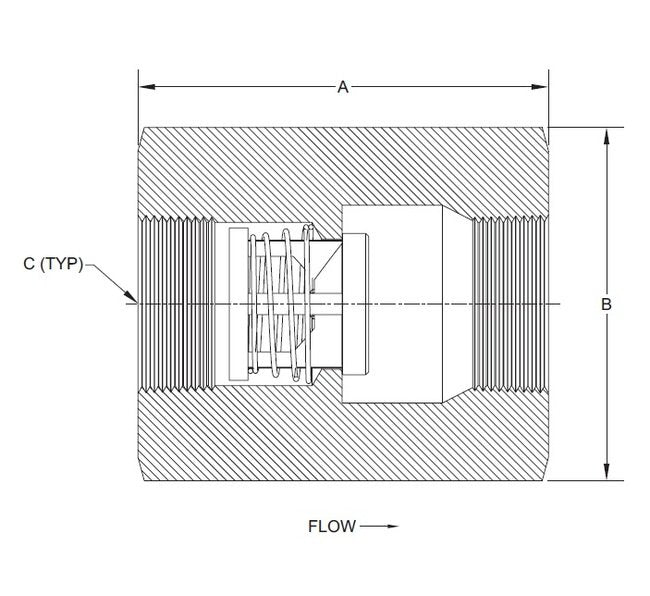

Meet your high-pressure applications with confidence using the Universal High-Pressure Check Valve. Crafted from 316 stainless steel, this valve features a 'metal-to-metal' seat, ensuring durability and reliability. With a non-shock pressure rating of 10,000 psig at 100°F, this valve offers superior performance. Versatile and adaptable, it can also function as a low-pressure relief valve or vacuum breaker, making it a valuable asset in various settings. Certified to meet European Conformity (CE) and International Organization for Standardization (ISO 9001) standards.

Product Specifications

Additional Information

The Wafer Insert check valve can also be used as a low-pressure relief valve or vacuum breaker by simply using the desired spring settings.

Note

Many valves in this series can be supplied with B16.34 certification. Consult the factory for more information.Made in USA.

Specifications Body Material

Specifications Body Material Availability

316 Stainless Steel (SS) - Standard | Alloy 20 (A2) - Semi-Standard | Alloy B (HB) - Contact the factory for these or other materials | Alloy C-276 (HC) - Semi-Standard | Carbon Steel (CS) - Standard | Monel® 400 or Alloy R405 - Semi-Standard | Titanium (TI) - Contact the factory for these or other materials

Specifications Certifications

European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified

Specifications Nominal Pipe Size

1/2 in

Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei

10,000 psig

Specifications Note For Material

Listed above are the most common material selections. Please contact the factory for additional options.

Specifications Seat Material

"Metal-to-Metal" = MT

Specifications Size Code

Specifications Special Options

T = FEP Encapsulated Spring (Contact the factory for more options)

Specifications Spring Material

Specifications Standard Cracking Pressure

1.50 psi

Specifications Valve Style

National Pipe Thread (NPT) Threads = U1

High-Pressure Check Valve - 1/2" NPT, 1.50 psi Cracking Pressure
