High-Pressure Check Valve 3/4" NPT 1.50 psi Cracking Pressure U1 Style
High-Pressure Check Valve 3/4" NPT 1.50 psi Cracking Pressure U1 Style
SKU:U1A-98986c
High-Pressure Check Valve with 1.50 psi Cracking Pressure, Reliable Performance & Compliance Standards.
Regular price
$139.99
Regular price
Sale price
$139.99
Unit price
per
Initiate Order
High-Pressure Check Valve 3/4" NPT 1.50 psi Cracking Pressure U1 Style
$139.99
Quantity: 1
Claim Your Seller Account
High-Pressure Check Valve 3/4" NPT 1.50 psi Cracking Pressure U1 Style
$139.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

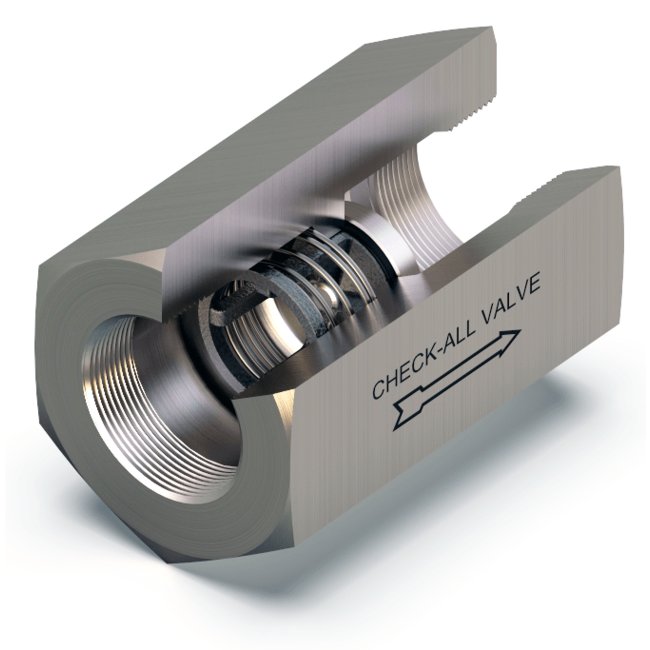

The Check-All® High-Pressure Check Valve in U1 style offers exceptional performance for high-pressure applications. Constructed from 316 Stainless Steel with a metal-to-metal seat, this valve ensures reliability and durability. It can also function as a low-pressure relief valve or a vacuum breaker with customizable spring settings. Certified to European Conformity (CE) PED 2014/68/EU and ISO 9001 standards, this valve provides the highest level of quality assurance. With a non-shock pressure rating of 10,000 psig at 100°F, it meets the most stringent institutional procurement requirements.
Product Specifications
Additional Information
The Wafer Insert check valve can also be used as a low-pressure relief valve or vacuum breaker by simply using the desired spring settings.
Note
Many valves in this series can be supplied with B16.34 certification. Consult the factory for more information.Made in USA.
Specifications Body Material
316 Stainless Steel = SS | Alloy 20 = A2 | Alloy B = HB | Alloy C-276 = HC | Carbon Steel = CS | Monel® 400 or Alloy R405 = MO | Titanium = TI
Specifications Body Material Availability
316 Stainless Steel (SS) - Standard | Alloy 20 (A2) - Semi-Standard | Alloy B (HB) - Contact the factory for these or other materials | Alloy C-276 (HC) - Semi-Standard | Carbon Steel (CS) - Standard | Monel® 400 or Alloy R405 - Semi-Standard | Titanium (TI) - Contact the factory for these or other materials
Specifications Certifications
European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified
Specifications Nominal Pipe Size
3/4 in
Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei
10,000 psig
Specifications Note For Material
Listed above are the most common material selections. Please contact the factory for additional options.
Specifications Seat Material
"Metal-to-Metal" = MT
Specifications Size Code
F
Specifications Special Options
T = FEP Encapsulated Spring (Contact the factory for more options)
Specifications Spring Material
17-7PH Stainless Steel = PH | 316 Stainless Steel = SS | Alloy B = HB | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Monel® 400 = MO | Titanium = TI
Specifications Standard Cracking Pressure
1.50 psi
Specifications Valve Style
National Pipe Thread (NPT) Threads = U1
