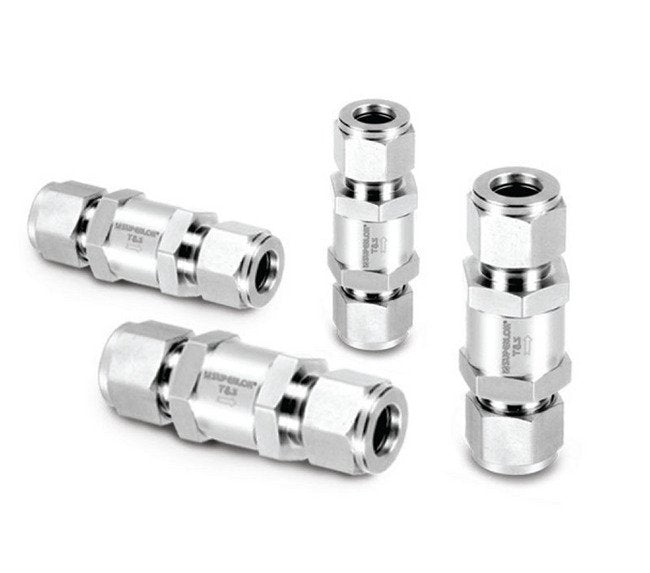

High Pressure Check Valve SHCV2 7.8mm Orifice 8mm SUPERLOK End Connections
High Pressure Check Valve SHCV2 7.8mm Orifice 8mm SUPERLOK End Connections
SKU:SHC-fb1b35
Reliable SHCV2 High Pressure Check Valve with 7.8mm Orifice & 8mm SUPERLOK End Connections for up to 6000 psig pressure. Ideal for industrial and government use.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
High Pressure Check Valve SHCV2 7.8mm Orifice 8mm SUPERLOK End Connections
$129.99
Quantity: 1
Claim Your Seller Account
High Pressure Check Valve SHCV2 7.8mm Orifice 8mm SUPERLOK End Connections
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SHCV2 Series High Pressure Check Valve features a precise 7.8mm orifice size, 8mm SUPERLOK end connections, and a robust design with a pressure rating of 6000 psig. Crafted with 316 stainless steel or brass body materials and EPDM, FKM, and NBR seal options, this valve ensures reliable performance in demanding environments. Tested for cracking pressure and reseal performance, it offers a secure solution for applications requiring a pressure rating of up to 413 bar. Perfect for industrial, government, and institutional settings seeking durability and performance.
Product Specifications
Features Features
Pressure rating up to 6,000 psig(413 bar) at 100 ºF (37 ºC)Cracking pressure fixed from 1/3 to 25 psig (0.02 to 1.7 bar)Variety of end connections316 stainless steel body material as standard.Each and every valve is tested for cracking pressure and reseal performance at the factory.
Note Note

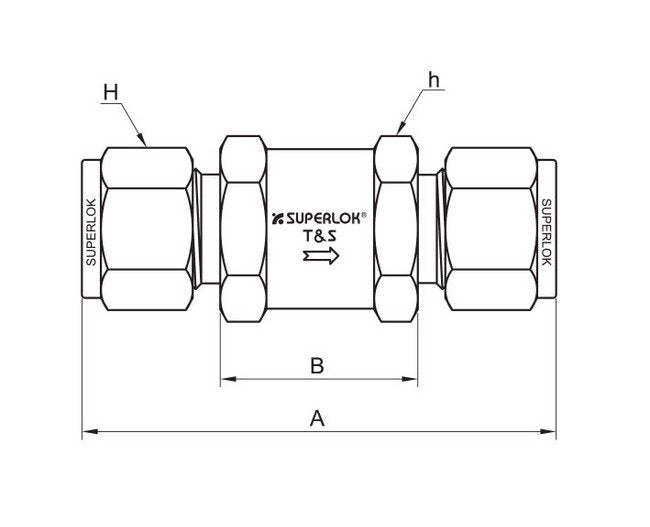

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
68.6 mm
Technical Specs Dimension B
31.2 mm
Technical Specs Dimension H
16 mm
Technical Specs End Connections
8 mm SUPERLOK®
Technical Specs Flow Coefficients Cv
1.80
Technical Specs Orifice Size
7.8 mm
Technical Specs Pressure Rating
6000 psig | 413 bar
Technical Specs Seal Material
Ethylene Propylene Diene Monomer (EPDM) | Fluorocarbon (FKM) | Nitrile Butadiene Rubber (NBR)
Technical Specs Temperature Rating With Standard Fluorocarbon Fk
375 ºF | 190 ºC
