High Pressure Coned-and-Threaded Nipples - Stainless Steel
High Pressure Coned-and-Threaded Nipples - Stainless Steel
SKU:ASS-28ea80
Durable Stainless Steel Nipples for High Pressure Systems. Custom Sizes Available. Ideal for Rapid System Make-up.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
High Pressure Coned-and-Threaded Nipples - Stainless Steel
$34.99
Quantity: 1
Claim Your Seller Account
High Pressure Coned-and-Threaded Nipples - Stainless Steel
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Pressure Coned-and-Threaded Nipples are expertly crafted from Type 316 Stainless Steel, ensuring exceptional durability and corrosion resistance. Designed for rapid system make-up, these nipples come in various sizes and lengths, including custom options, meeting the stringent requirements for Autoclave high pressure valves and fittings. With a working pressure of 40000 psi at 100°F, these nipples provide reliable performance for high-pressure applications. Stocked for prompt availability, these nipples are a reliable choice for industrial use.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

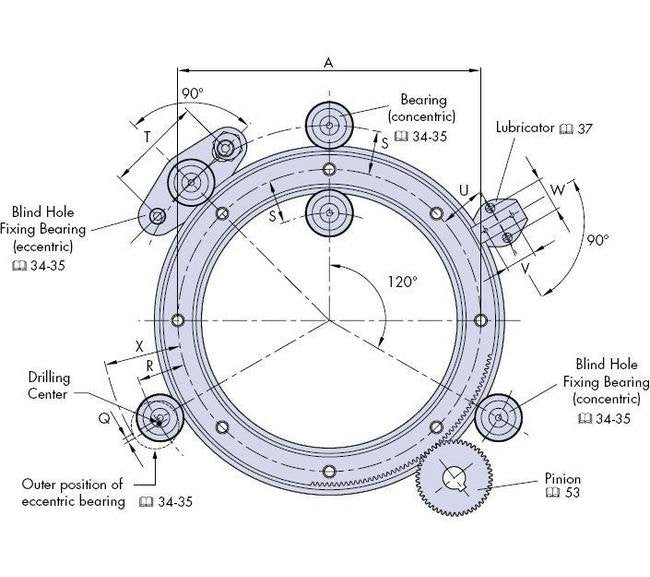

Drilling Positions Dimension Q
1.3 mm
Drilling Positions Dimension R
12.3 mm
Drilling Positions Dimension S
10.9 in
Drilling Positions Dimension T 02
30 mm
Drilling Positions Dimension U 02
11.5 mm
Drilling Positions Dimension V 02
6.5 mm
Drilling Positions Dimension W 02
12 mm
Manufacturing Notes 0

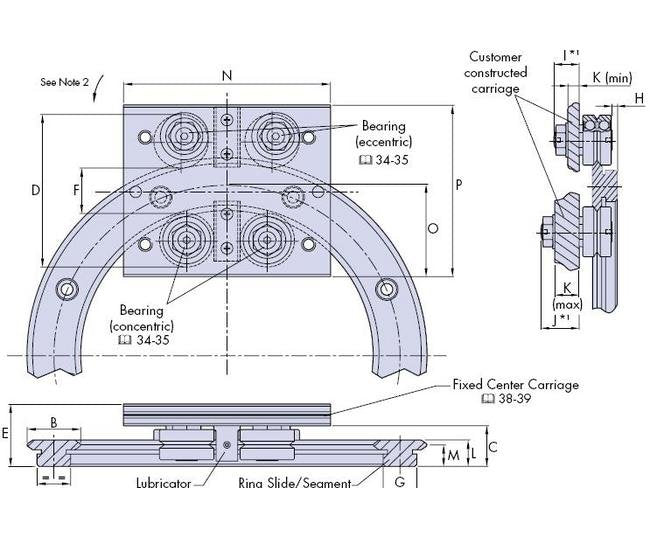

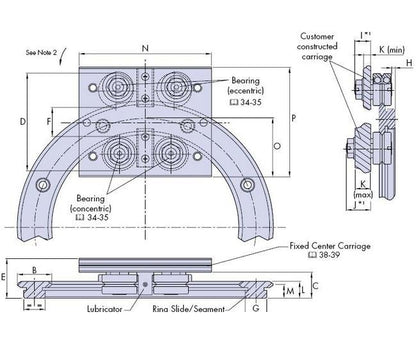

For Dimension I and J : Two lengths of stud are available for each size of bearing. Choose according to required carriage thickness.For 2 : Offset holes in carriage for eccentric bearings necessitate adjustment in direction of arrow shown.For Drilling Position : Exact theoretical values have been given for 'Q', 'R' and 'S'. Positional accuracy of dimension 'S' will determine the axis of the ring. Positional accuracy for dimensions 'Q' and 'R' are not normally critical. Holes for bearing studs should be reamed to tolerance F6 for a sliding fit.
Specifications Dimension A
127 mm
Specifications Dimension B
12 mm
Specifications Dimension D
34.7 mm
Specifications Dimension E
19.0 mm
Specifications Dimension F
9.1 mm
Specifications Dimension G
8.6 mm
Specifications Dimension H
1.5 mm
Specifications Dimension I
5.8 mm
Specifications Dimension J
9.5 mm
Specifications Dimension K Max
6.7 mm
Specifications Dimension K Min
2.2 mm
Specifications Dimension L
7.7 mm
Specifications Dimension M
6.2 mm
Specifications Dimension N
55 mm
Specifications Dimension O
21 mm
Specifications Dimension P
40 mm
Specifications Dimension X
20.5 mm
Specifications For Use With Bearing
J13
