High Pressure Coned-and-Threaded Stainless Steel Nipples
High Pressure Coned-and-Threaded Stainless Steel Nipples
SKU:ASS-d1029f
Enhance system integrity with High Pressure Stainless Steel Nipples - durable, precise, and reliable fittings for industrial high pressure applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
High Pressure Coned-and-Threaded Stainless Steel Nipples
$49.99
Quantity: 1
Claim Your Seller Account
High Pressure Coned-and-Threaded Stainless Steel Nipples
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Pressure Coned-and-Threaded Stainless Steel Nipples by Autoclave Engineers are expertly designed for rapid system make-up, ensuring optimal performance for high pressure applications. Made from high-grade Type 316 and Type 304 Stainless steel, these nipples come in various sizes and lengths to perfectly fit Autoclave high pressure valves and fittings. With a working pressure of 60000 psi at 100°F (37.8°C), these nipples guarantee durability and reliability under extreme conditions. Whether standard or custom lengths, these nipples provide superior quality and precise dimensions, meeting the stringent demands of industrial operations.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Drilling Positions Dimension Q
1.8 mm
Drilling Positions Dimension R
19 mm
Drilling Positions Dimension S
17.2 in
Drilling Positions Dimension T 02
38 mm
Drilling Positions Dimension U 02
18 mm
Drilling Positions Dimension V 02
13 mm
Drilling Positions Dimension W 02
13 mm
Manufacturing Notes 0

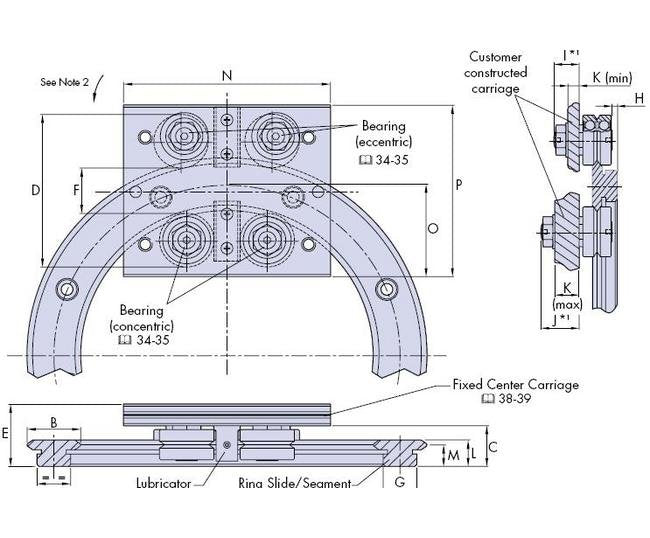

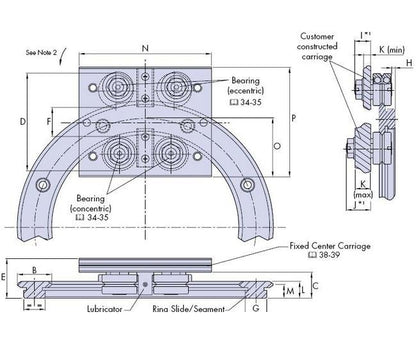

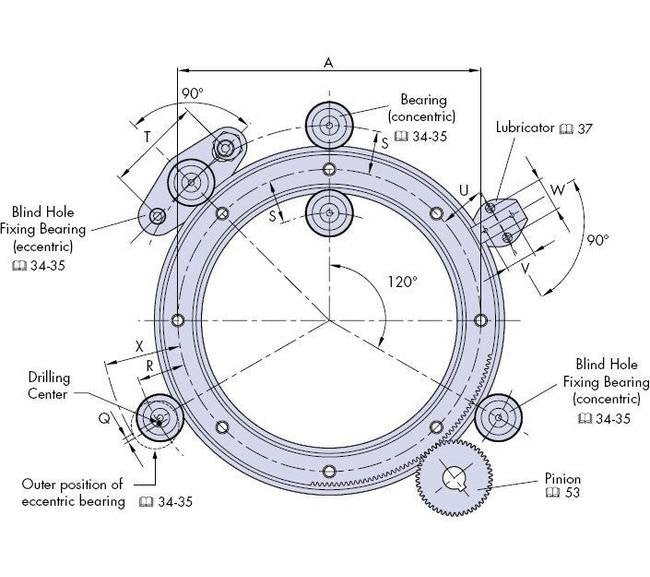

For Dimension I and J : Two lengths of stud are available for each size of bearing. Choose according to required carriage thickness.For 2 : Offset holes in carriage for eccentric bearings necessitate adjustment in direction of arrow shown.For Drilling Position : Exact theoretical values have been given for 'Q', 'R' and 'S'. Positional accuracy of dimension 'S' will determine the axis of the ring. Positional accuracy for dimensions 'Q' and 'R' are not normally critical. Holes for bearing studs should be reamed to tolerance F6 for a sliding fit.
Specifications Dimension A
143 mm
Specifications Dimension B
20 mm
Specifications Dimension D
52.5 mm
Specifications Dimension E
24.75 mm
Specifications Dimension F
16.3 mm
Specifications Dimension G
12.4 mm
Specifications Dimension H
2.4 mm
Specifications Dimension I
7.4 mm
Specifications Dimension J
14 mm
Specifications Dimension K Max
10 mm
Specifications Dimension K Min
2.4 mm
Specifications Dimension L
10 mm
Specifications Dimension M
8 mm
Specifications Dimension N
75 mm
Specifications Dimension O
34 mm
Specifications Dimension P
64 mm
Specifications Dimension X
30.6 mm
Specifications For Use With Bearing
J18
