High Pressure Connection Collar - 60,000 psi MAWP
High Pressure Connection Collar - 60,000 psi MAWP
SKU:BEA-5e6987
Engineered for 60,000 psi, compatible with 30VM, 40VM, 60VM valves and fittings. Secure and leak-free connection for critical applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
High Pressure Connection Collar - 60,000 psi MAWP
$89.99
Quantity: 1
Claim Your Seller Account
High Pressure Connection Collar - 60,000 psi MAWP
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Pressure Connection Collar is engineered by Autoclave for superior performance up to 60,000 psi (4137 bar). Designed for compatibility with 30VM, 40VM, and 60VM valves and fittings, this collar ensures reliable high-pressure connections. Precision-crafted for 1/4-inch tubing, it guarantees a secure fit and leak-free operation, essential for critical applications in industrial and research settings.
Product Specifications
Manufacturing Notes 0

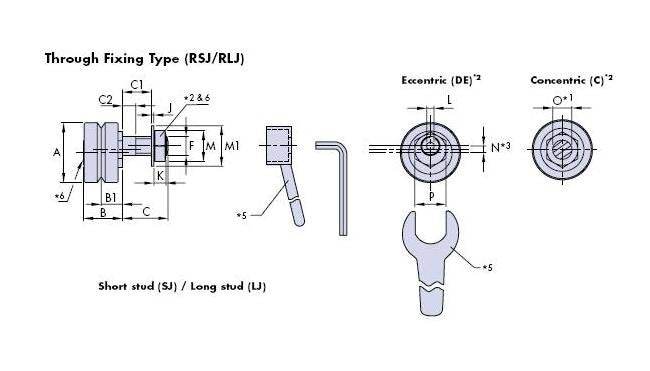

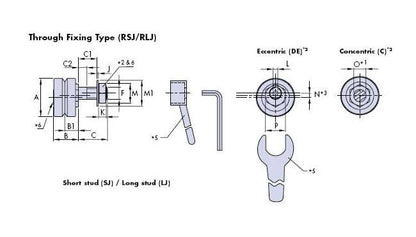

For 1: It is recommended that holes to suit bearing mounting studs should be reamed to tolerance F6 for a sliding fit.For 2: Nuts and washers are supplied with both concentric and eccentric RSJ/RLJ type bearings.For Dimension N & R: 'N' is the eccentric offset due to the double eccentric design (2 x N = total stroke). R dimension is both the eccentric offset of the adjusting nut and total stroke at the bearing centerline.For Dimension B1: Controlled height (CHK) bearings are selected in ±0.010mm bands in respect of the B1 dimension. They are supplied in sets of up to 50 parts as standard, with larger sets on request.For 5: For adjusting tool part numbers see table. For adjustment procedure and fixing nut tightening torques see 58.For 6: Fasteners for the through fixing type bearings are black on the concentric version and bright zinc plated on the eccentric version for identification purposes, except stainless steel type.For 7: Stainless steel bearings are only available nitrile sealed
Specifications Dimension A
34 mm
Specifications Dimension B
21.3 mm
Specifications Dimension B1
11.5 in
Specifications Dimension C1 Rlj
14.8 mm
Specifications Dimension C1 Rsj
6.6 mm
Specifications Dimension C2 Rlj
5.9 mm
Specifications Dimension C2 Rsj
5.2 mm
Specifications Dimension C Rlj
22 mm
Specifications Dimension C Rsj
13.8 mm
Specifications Dimension Q
4 mm
Specifications Dimension R
2.0 mm
Specifications Dimension S
9.5 in
Specifications Dimension S1
8.5 mm
Specifications Dimension T
17.5 mm
Specifications Dimension T1
6.5 mm
Specifications Dimension T2
12.5 mm
Specifications Dimension U1
90.5 mm
Specifications Dimension U 01
60 mm
Specifications Dimension V
17 mm
Specifications Dimension W
42 mm
Specifications Dimension X
M6
Specifications Dimension Y
10 mm
Specifications Dimension Z
14 mm
Specifications For Use With Curved Segments
REM, RIM
Specifications For Use With Ring Discs
RD44
Specifications For Use With Ring Slides
R44
Specifications For Use With Track System
TNM
