High Pressure Connection Collar - 60,000 psi MAWP
High Pressure Connection Collar - 60,000 psi MAWP
SKU:LUB-aae8a8
Experience superior pressure handling up to 60,000 psi with our Connection Collar engineered by Autoclave Engineers.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
High Pressure Connection Collar - 60,000 psi MAWP
$79.99
Quantity: 1
Claim Your Seller Account
High Pressure Connection Collar - 60,000 psi MAWP
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Pressure Connection Collar is engineered for extreme pressures, reaching up to 60,000 psi (4137 bar). Designed by Autoclave Engineers, this collar features 1/4, 3/8, and 9/16 connection components, ensuring compatibility with 30VM, 40VM, 60VM valves, and fittings. With a durable construction and precise engineering, this collar is ideal for demanding industrial applications requiring high-pressure performance and reliability.
Product Specifications
Manufacturing Notes 0

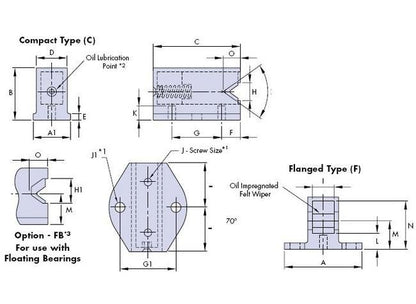

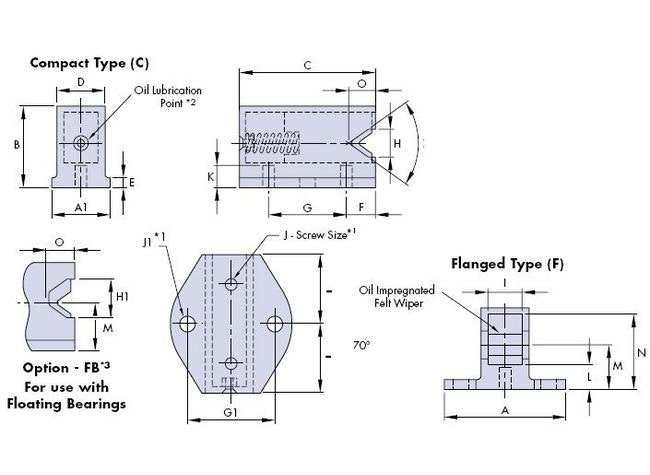

For 1: 2 machine screws with cross-recessed pan heads to DIN7985A are supplied for fixing the flanged type lubricator (see J1 in table). Additionally, 2 self tapping screws for plastic with PT thread form and cross-recessed pan heads are supplied for the compact type lubricator (see J in table).For 2: Lubrication interval depends on length of stroke, duty and environmental factors. Replenish lubricant as necessary using a 68 viscosity EP mineral oil.For 3: Size 25,44 & 76 lubricators are available with increased clearance "H1" to accommodate the "V float" of the floating bearings
Specifications Dimension A1 Type C
8 mm
Specifications Dimension A Type F
19 mm
Specifications Dimension B
12 mm
Specifications Dimension C
22.5 mm
Specifications Dimension D
6.5 mm
Specifications Dimension E
2 mm
Specifications Dimension F
4.75 mm
Specifications Dimension G1 01
13 mm
Specifications Dimension G 01
13 mm
Specifications Dimension H
7.2 mm
Specifications Dimension I
4 mm
Specifications Dimension J1 Hole
2.7 mm
Specifications Dimension J1 Screw Size
M2.5 x 6
Specifications Dimension J
2.5 mm
Specifications Dimension J Length
10 mm
Specifications Dimension K
2.5 mm
Specifications Dimension L
3.5 mm
Specifications Dimension M
6.75 mm
Specifications Dimension N
10.75 mm
Specifications Dimension O
4.5 mm
Specifications For Use With Curved Segments
REV, RIV
Specifications For Use With Ring Slides
R20
Specifications For Use With Track System
TNV 20
Specifications Weight
3 g
