High Pressure Connection Plug (60,000 psi MAWP)
High Pressure Connection Plug (60,000 psi MAWP)
SKU:FIX-105e28
High Pressure Connection Plug designed for up to 60,000 psi, durable and precise for high-pressure environments.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
High Pressure Connection Plug (60,000 psi MAWP)
$49.99
Quantity: 1
Claim Your Seller Account
High Pressure Connection Plug (60,000 psi MAWP)
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Pressure Connection Plug is engineered by Autoclave to withstand pressures up to 60,000 psi (4137 bar), ensuring reliable performance in demanding environments. Compatible with 30VM, 40VM, 60VM valves and fittings, this plug features a 9/16 inch tube size for seamless integration. Crafted for durability and precision, it offers a secure connection for high-pressure applications, meeting stringent quality standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Manufacturing Notes 0

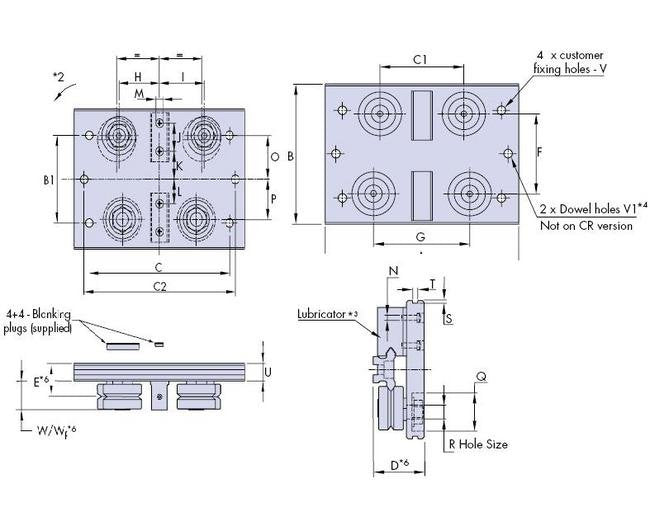

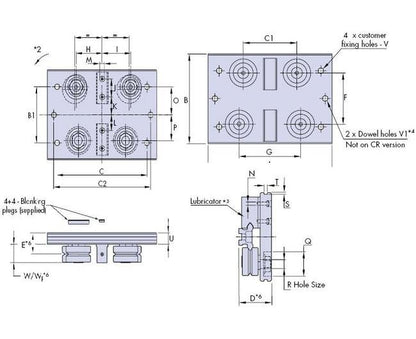

For 1: Fixed center carriages will experience a reduction in preload or a slight clearance as they pass between the curves and straights on a track system, but this is rarely an issue. This clearance is detailed on 57. Please note the FCC25 159 has a larger than normal clearance. Bogie carriages 47 are not subject to clearance.For 2: Offset holes in carriage for eccentric bearings necessitate adjustment rotation in the direction shown.For 3: It is recommended that carriages are fitted with lubricators. The quantity of lubricators may be reduced in systems with many carriages or where the bleed lubrication facility is used.For 4: Dowel holes V1 define the center and may be used for location purposes. They are not included as standard on the corrosion resistant version, but are available on special request.For 5: CHK controlled height carriages use CHK bearings and are supplied in sets, matched by their E dimension. It is recommended to specify CHK for precision applications or where consistent carriage heights are important. CHK is standard for carriages with DR bearings.For 6: The W dimension is greater for carriages with floating bearings - see Wf in the table. Dimensions D and E will change for carriages with floating bearings. The amount of float is indicated by dimension B 1
Specifications Dimension A
55 mm
Specifications Dimension B
40 mm
Specifications Dimension B1
25 in
Specifications Dimension C
48 mm
Specifications Dimension C1
20 mm
Specifications Dimension C2 001
45 mm
Specifications Dimension D
19 mm
Specifications Dimension E
12.8 mm
Specifications Dimension F
21.9 mm
Specifications Dimension G
25.52 mm
Specifications Dimension H
11.11 mm
Specifications Dimension I
14.41 mm
Specifications Dimension J
6.5 mm
Specifications Dimension K
9.3 mm
Specifications Dimension L
7.8 mm
Specifications Dimension M
4.5 mm
Specifications Dimension M Depth
4.5 mm
Specifications Dimension N
2.7 mm
Specifications Dimension O
11.89 mm
Specifications Dimension P
10.94 mm
Specifications Dimension Q
12.5 mm
Specifications Dimension Q Depth
4.8 mm
Specifications Dimension R Hole Size F6
4 mm
Specifications Dimension R Tolerance Hole Size F6
+0.010 mm | +0.018 mm
Specifications Dimension S
1 in
Specifications Dimension T
3 mm
Specifications Dimension U
7.34 mm
Specifications Dimension V
M4
Specifications Dimension V1 K6
4 mm
Specifications Dimension V1 Tolerance K6
+0.002 mm | -0.006 mm
Specifications Dimension W
10.1 mm
Specifications For Use With Ring Slides And Curved Segments
R12 93 R360/R180/R90
Specifications For Use With Track System
TR12 93
Specifications Weight
70 g
