Durable High Pressure Cross Fittings for up to 40000 psi, featuring secure glands and collars for industrial applications.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Meet stringent industry requirements with our High Pressure Cross Fittings from Autoclave Engineers. These fittings are designed for durability and optimal performance in high-pressure environments up to 40000 psi. The fittings come complete with glands and collars, ensuring a secure connection. With precise dimensions and high-pressure capabilities, these fittings are ideal for industrial applications requiring reliability and efficiency.

Product Specifications

Manufacturing Notes 0

For Straight Slides: Some distortion may be present in segments in their free unmounted state. This may be overcome by bolting to the mounting surface and setting to adjacent slides using the keyway alignment facility 41. True Shape segments are available on request

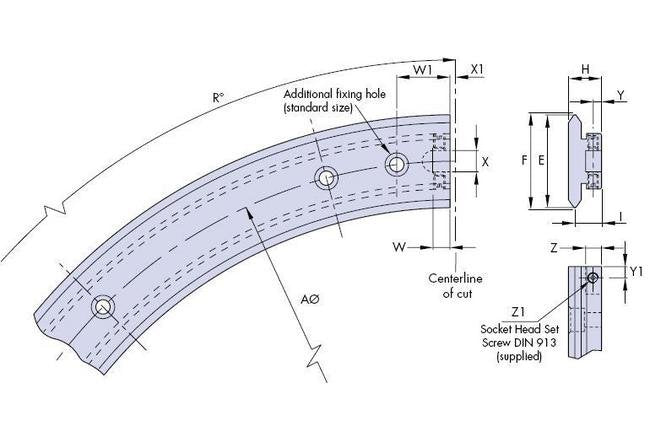

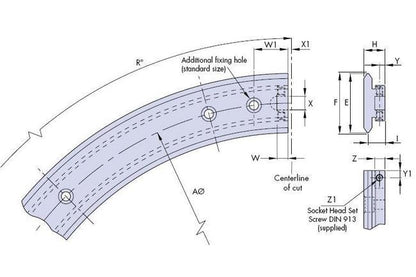

Specifications Dimension A

143 mm

Specifications Dimension E

20 mm

Specifications Dimension F

20.37 mm

Specifications Dimension H

10 mm

Specifications Dimension I 0025

8 mm

Specifications Dimension R

90 Âº | 180 Âº

Specifications Dimension W

6 mm

Specifications Dimension W1

13 mm

Specifications Dimension X

4 mm

Specifications Dimension X1 02

1.5 mm

Specifications Dimension Y

2 mm

Specifications Dimension Y1

3.5 mm

Specifications Dimension Z

4.5 mm

Specifications Dimension Z1

M3 x 4
