High Pressure Cross Fittings - F250C
High Pressure Cross Fittings - F250C
SKU:HEP-749f51
Precision-engineered High Pressure Cross Fittings - F250C for secure, leak-free connections in high-pressure systems. Compatible with Autoclave Engineers tubing.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
High Pressure Cross Fittings - F250C
$49.99
Quantity: 1
Claim Your Seller Account
High Pressure Cross Fittings - F250C
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Pressure Cross Fittings - F250C by Autoclave Engineers are precision-engineered with a pressure rating of 60000 psi, ensuring robust and leak-free connections. Designed with a 1/4-inch outside diameter tube and 0.094-inch minimum opening, these fittings guarantee optimal performance in high-pressure applications. With a reliable construction and compatibility with Autoclave Engineers tubing, these fittings are ideal for diverse industrial settings. For convenient installations, optional mounting hole configurations are available. Trust Autoclave Engineers for superior quality fittings that meet stringent industry standards.
Product Specifications
Manufacturing Notes 0

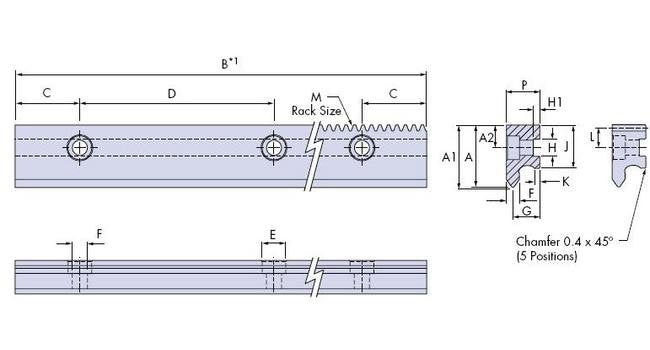

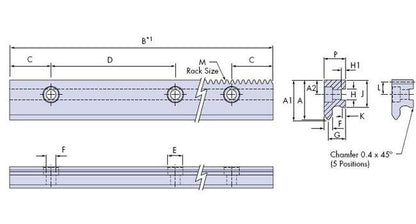

For Dimension B: Standard slide lengths are available in multiples of hole pitch 'D' + (2 x 'C') up to a 4020 mm maximum length. Special length slides can be cut to order.For 2: Slides in their free unmounted state are not necessarily straight. They should be set to the required straightness when bolting down to the mounting surface at assembly.For Dimension A1 and G: For track system requirements dimensions 'A1' and 'G' will be matched with corresponding dimensions 'F' and 'I', 46.For Dimension M: Single edge slides with a rack, will be supplied in lengths that correspond to multiplies of rack pitch. The position of the ends of the slides is accurately controlled to coincide with the center of the rack root to give perfect running joints for slides and ring segments.
Specifications Dimension A
29 mm
Specifications Dimension A1
29.37 mm
Specifications Dimension A2
10.5 mm
Specifications Dimension C
30 mm
Specifications Dimension D 02
90 mm
Specifications Dimension E
11 mm
Specifications Dimension E Depth
6.1 mm
Specifications Dimension F
6.2 mm
Specifications Dimension G
12.5 mm
Specifications Dimension H1
3 mm
Specifications Dimension H 005 000
8 mm
Specifications Dimension J 0025
20 mm
Specifications Dimension K
2.3 mm
Specifications Dimension L
9.25 mm
Specifications Dimension M Module
1.25 mm
Specifications Dimension P
15.6 mm
Specifications For Use With Curved Segments
TRIM482, TREM655
