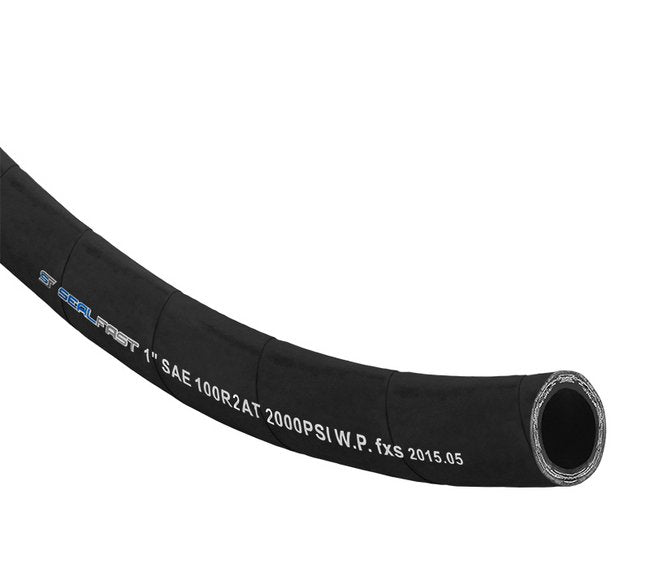

High Pressure Double Braided Hydraulic Hose - 100R2AT On Reels
High Pressure Double Braided Hydraulic Hose - 100R2AT On Reels
SKU:HOS-d902ab
Premium hydraulic hose exceeding SAE J517 100R2AT standards, ideal for mineral oil and glycol base liquids.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
High Pressure Double Braided Hydraulic Hose - 100R2AT On Reels
$149.99
Quantity: 1
Claim Your Seller Account
High Pressure Double Braided Hydraulic Hose - 100R2AT On Reels
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Pressure Double Braided Hydraulic Hose - 100R2AT On Reels is a top-tier choice for mineral oil and glycol-based liquids. This hose exceeds SAE J517 100R2AT standards, ensuring exceptional performance in challenging conditions. With a working pressure of 2250 psi and burst pressure of 9000 psi, it is built for reliability and durability. The hose features oil and weather-resistant synthetic rubber cover, oil-resistant synthetic rubber tube, and two steel wire braid reinforcement. Suitable for temperatures ranging from -40 to +250 °F, this hose is designed to excel in demanding environments.
Product Specifications
Specifications Bend Radius
9.5 in
Specifications Burst Pressure 70
9000 psi
Specifications Cover
Oil and Weather Resistant Synthetic Rubber
Specifications Id
3/4 in
Specifications Od
1.16 in
Specifications Package Type
Feet
Specifications Reinforcement
Two Steel Wire Braid
Specifications Temperature Range
-40 to +250 ºF
Specifications Tube
Oil Resistant Synthetic Rubber
Specifications Weight Per 100 Foot
63.2 lb
Specifications Working Pressure
2250 psi
