Autoclave Engineers High Pressure Dual-Disc Line Filters - Reliable filtration for industrial and aerospace applications.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
High Pressure Dual-Disc Line Filters - Autoclave Engineers
$289.99
Quantity: 1
Claim Your Seller Account
High Pressure Dual-Disc Line Filters - Autoclave Engineers
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autoclave Engineers High Pressure Dual-Disc Line Filters are essential for industrial, chemical processing, aerospace, nuclear, and other rigorous applications. Featuring a dual-disc design, these filters effectively trap large contaminant particles with a precision downstream/upstream micron size of 10/35. Crafted with high-grade materials such as 316 Stainless Steel and 300 Series Stainless Steel, these filters offer durability and reliability. With a pressure rating of 60000 psi and an effective filter element area of 0.15 in², these filters ensure optimal performance and longevity in high-pressure environments.
Product Specifications
Additional Information 0
The PTFE membrane filtration media is housed in a polypropylene element which incorporates a positive double o-ring click-lock seal and is 100% integrity tested for reliable performance.Absolute bacteria and particulate retention for critical integrity.With high efficiency and low pressure drop these filters provide efficient, cost effective performance for absolute validated filtration in compressed air or gas prior to incidental product contact. There is no better filter for your critical process filtration needs.
Applications 0
Food Processing | Beverage | Dairy | Biotechnology | Hospitals | Pharmaceuticals
Financing Approve Payments
Finance with Approve Payments
Materials Of Construction Optional Body Housing Materials
1.4404 Quality 316L Stainless
Materials Of Construction Optional Drain And Vent Connections Ma
1/4 in BSPP
Materials Of Construction Optional Element To Housing Connection
Dual O-Ring Positive Click Lock Seal
Materials Of Construction Optional Endcaps Element Materials
Polypropylene
Materials Of Construction Optional Inlet And Outlet Connections
Tri-Clamp Sanitary
Materials Of Construction Optional Media Element Materials
Hydrophobic PTFE Membrane
Materials Of Construction Optional Media Support Element Materia
Polypropylene
Materials Of Construction Optional Polishing Housing Materials
Passivated and Polished to Grade Ra <1.6 µm
Materials Of Construction Optional Seals Element Materials
Dual Silicone O-Rings
Materials Of Construction Optional Seals Housing Materials
Consult Factory
Materials Of Construction Standard Body Housing Materials
1.4301 Quality 304 Stainless
Materials Of Construction Standard Drain And Vent Connections Ma
1/4 in BSPP
Materials Of Construction Standard Element To Housing Connection
Dual O-Ring Positive Click Lock Seal
Materials Of Construction Standard Endcaps Element Materials
Polypropylene
Materials Of Construction Standard Inlet And Outlet Connections
NPT (Female)
Materials Of Construction Standard Media Element Materials
Hydrophobic PTFE Membrane
Materials Of Construction Standard Media Support Element Materia
Polypropylene
Materials Of Construction Standard Polishing Housing Materials
Passivated and Polished to Grade Ra <1.6 µm
Materials Of Construction Standard Seals Element Materials
Dual Silicone O-Rings
Materials Of Construction Standard Seals Housing Materials
Aseptic EPDM
Note Note
All materials conform to 21CFR Part 177 of the US code of Federal Regulations and USP Class VI Biological test for plastics.
Performance Specifications Maximum Continuous Operating Temperat
140 ºF
Performance Specifications Maximum Design Operating Pressure
232 psig
Performance Specifications Maximum Steam Sterilization Temperatu
257 ºF
Performance Specifications Particle Removal At 100 Pleated Depth
0.2 Micron
Specifications Filter Type
Membrane
Specifications Shipping Weight
8.8 lb | 19.4 lb

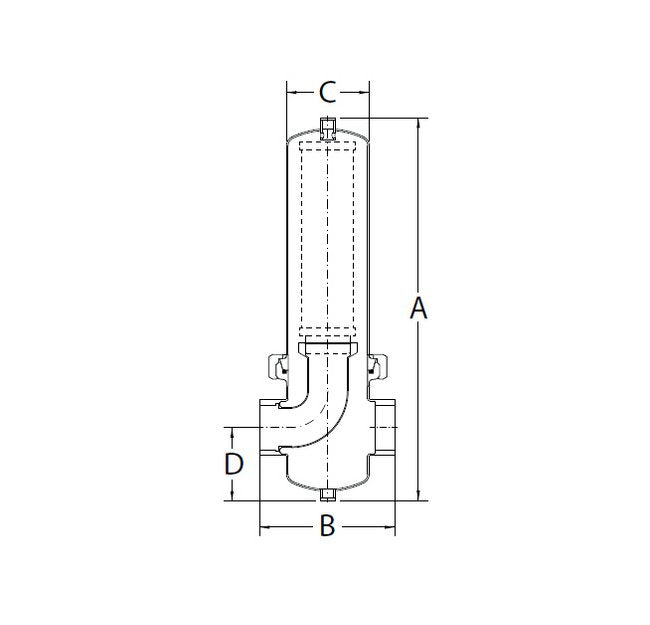

Technical Specification Dimension A
40.039 in
Technical Specification Dimension B
7.165 in
Technical Specification Dimension C
4.094 in
Technical Specification Dimension D
3.957 in
Technical Specification Inlet And Outlet Connection Size
3 in NPTF
Technical Specification Maximum Rated Flow
702 scfm | 1193 Nm³/h
Technical Specification Replacement Element Kit
E 130 SM
