The High Pressure Dual-Disc Line Filters by Autoclave Engineers are essential components for various industrial, chemical processing, aerospace, nuclear, and other critical applications. Featuring a dual-disc design, these filters effectively trap large contaminant particles with the upstream filter element, preventing clogs in the downstream micron-size element. Constructed with high-quality materials including 316 Stainless Steel for the body, cover, and cover gland, and 300 Series Stainless Steel for the filter elements, these filters ensure durability and reliability. With a pressure rating of 60000 psi and an effective filter element area of 0.07 in², these filters deliver exceptional performance and longevity. Replaceable filter elements with standard micron sizes of 35/65 ensure efficient filtration, while options for 5/10 or 10/35 micron sizes are available upon request. Easily replaceable filter elements and compatibility with various connection components make these filters versatile and user-friendly.
Product Specifications
Additional Information 0
The non-woven depth pleated polypropylene elements incorporate a positive double o-ring clicklock seal and are 100% integrity tested prior to shipment for reliable performance.High performance filtration for sterile process applications.With high efficiency and low pressure drop these filters provide efficient, cost effective performance for bio-burden reduction in compressed air or gas prior to incidental product contact. There is no better filter for your process filtration needs.
Applications 0
Food Processing | Beverage | Dairy | Biotechnology | Hospitals | Packing Industry
Financing Approve Payments
Finance with Approve Payments
Materials Of Construction Optional Body Housing Materials
1.4404 Quality 316L Stainless
Materials Of Construction Optional Drain And Vent Connections Ma
1/4 in BSPP
Materials Of Construction Optional Element To Housing Connection
Dual O-Ring Positive Click Lock Seal
Materials Of Construction Optional Endcaps Element Materials
Polypropylene
Materials Of Construction Optional Inlet And Outlet Connections
Tri-Clamp Sanitary
Materials Of Construction Optional Media Element Materials
Hydrophobic Graded Porosity Non-Woven Depth Pleated Polypropylene
Materials Of Construction Optional Media Support Element Materia
Polypropylene
Materials Of Construction Optional Polishing Housing Materials
Passivated and Polished to Grade Ra <1.6 µm
Materials Of Construction Optional Seals Element Materials
Dual Silicone O-Rings
Materials Of Construction Optional Seals Housing Materials
Consult Factory
Materials Of Construction Standard Body Housing Materials
1.4301 Quality 304 Stainless
Materials Of Construction Standard Drain And Vent Connections Ma
1/4 in BSPP
Materials Of Construction Standard Element To Housing Connection
Dual O-Ring Positive Click Lock Seal
Materials Of Construction Standard Endcaps Element Materials
Polypropylene
Materials Of Construction Standard Inlet And Outlet Connections
NPT (Female)
Materials Of Construction Standard Media Element Materials
Hydrophobic Graded Porosity Non-Woven Depth Pleated Polypropylene
Materials Of Construction Standard Media Support Element Materia
Polypropylene
Materials Of Construction Standard Polishing Housing Materials
Passivated and Polished to Grade Ra <1.6 µm
Materials Of Construction Standard Seals Element Materials
Dual Silicone O-Rings
Materials Of Construction Standard Seals Housing Materials
Aseptic EPDM
Note Note
All materials conform to 21CFR Part 177 of the US code of Federal Regulations and USP Class VI Biological test for plastics.
Performance Specifications Maximum Continuous Operating Temperat
120 ºF

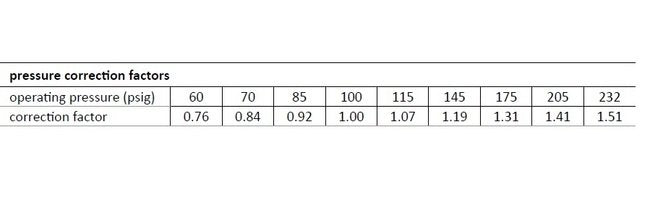

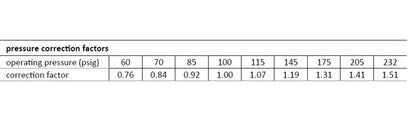

Performance Specifications Maximum Design Operating Pressure
232 psig
Performance Specifications Maximum Steam Sterilization Temperatu
257 ºF
Performance Specifications Particle Removal At 100 Pleated Depth
0.3 Micron
Specifications Shipping Weight
3.3 lb | 7.3 lb

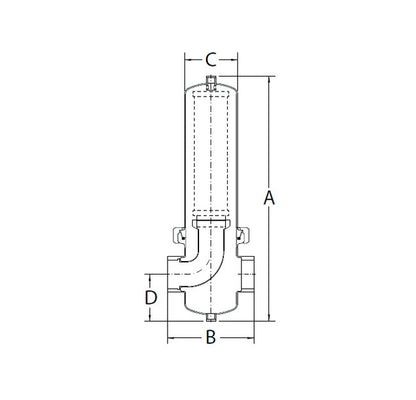

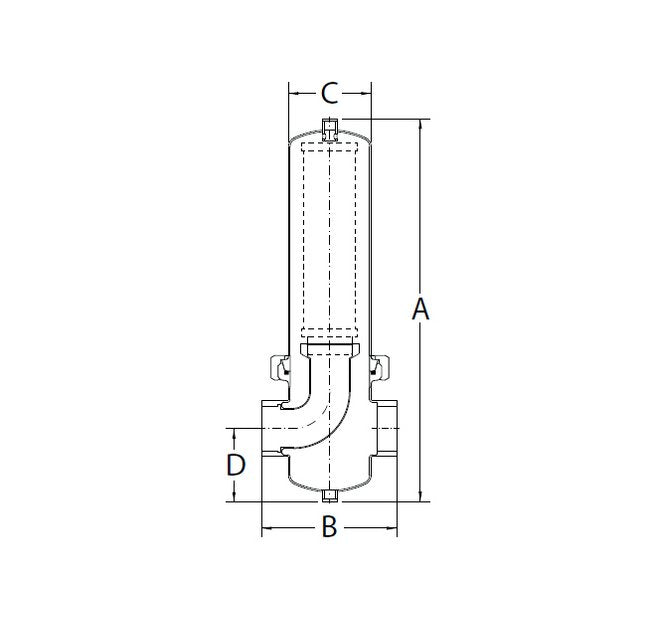

Technical Specification Dimension A
11.397 in
Technical Specification Dimension B
4.921 in
Technical Specification Dimension C
3.346 in
Technical Specification Dimension D
2.774 in
Technical Specification Inlet And Outlet Connection Size
1 in NPTF
Technical Specification Maximum Rated Flow
170 scfm | 289 Nm³/h
Technical Specification Replacement Element Kit
E 105 SD
